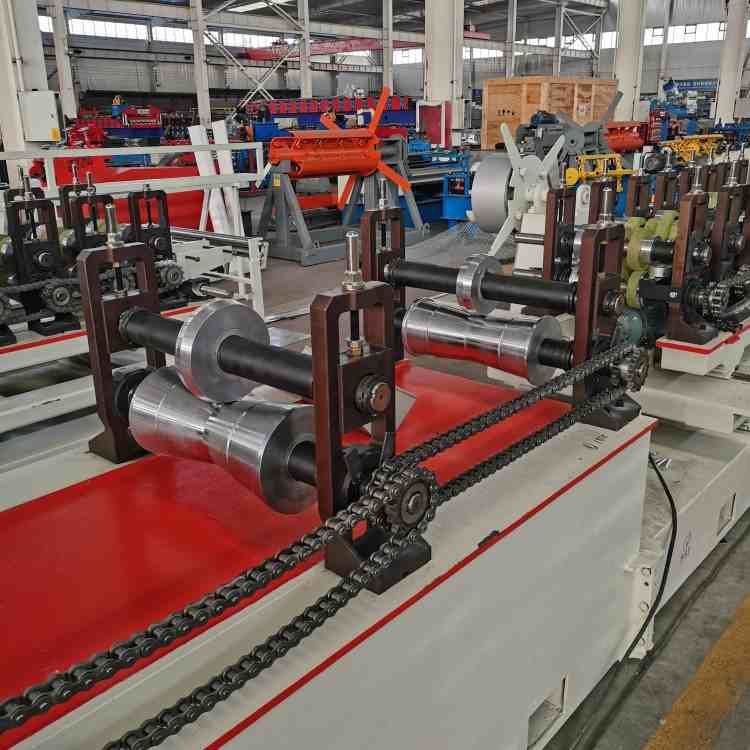

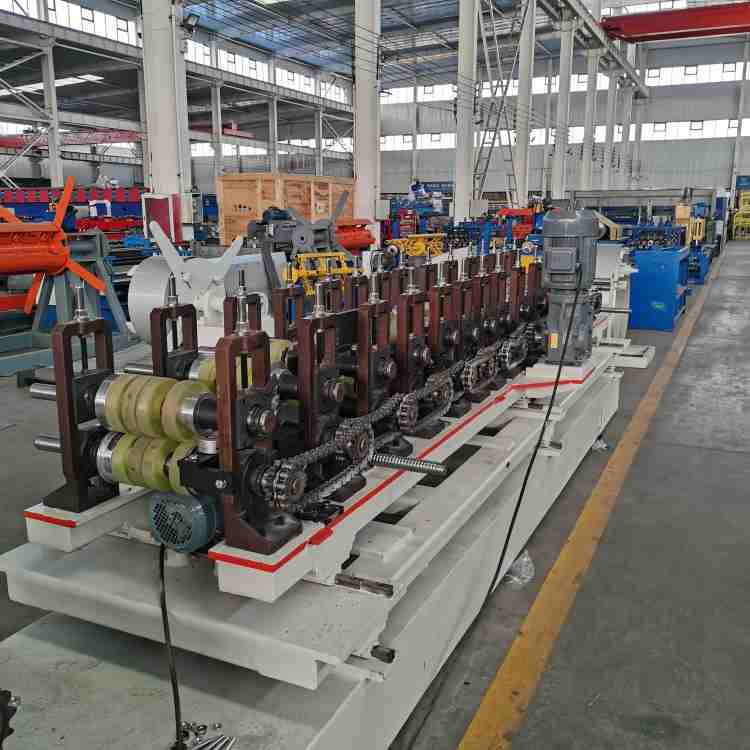

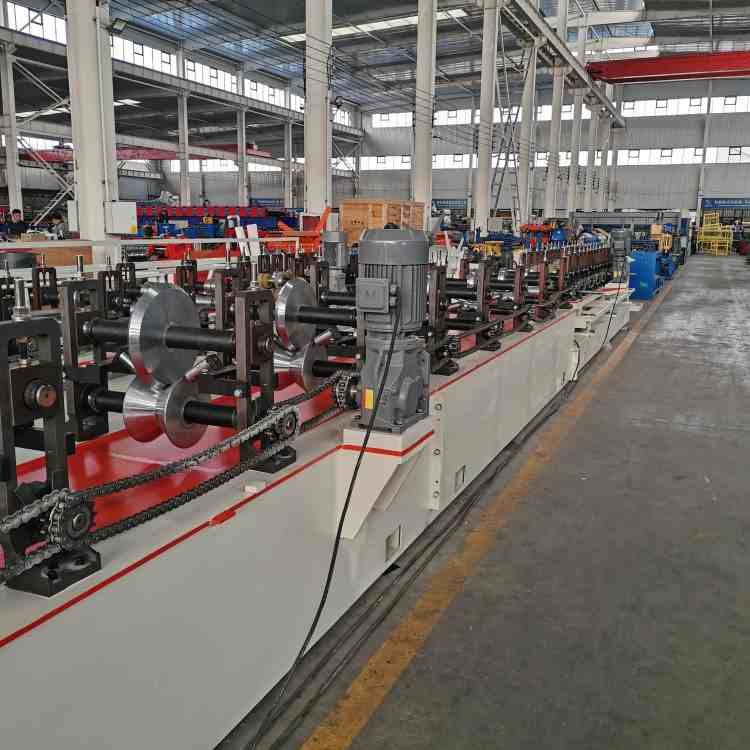

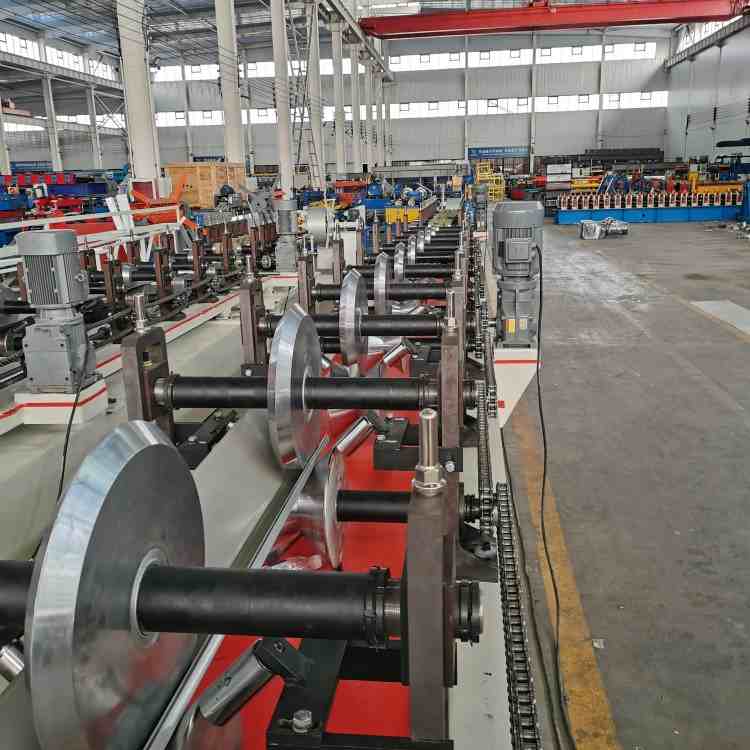

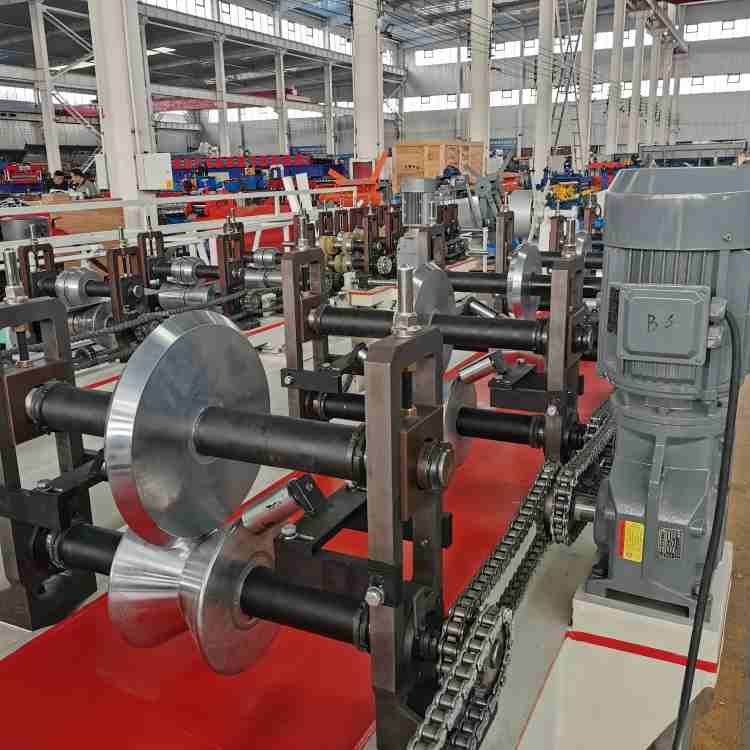

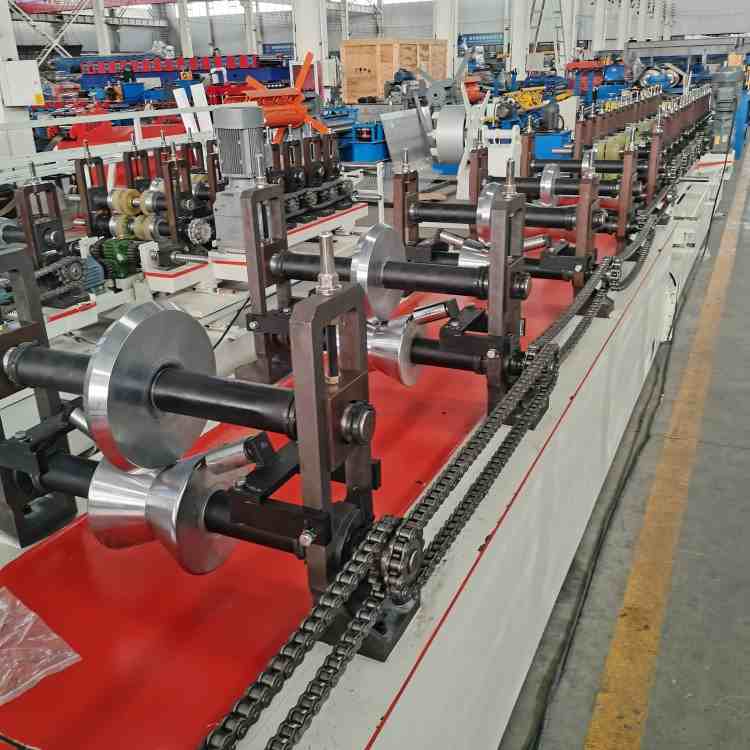

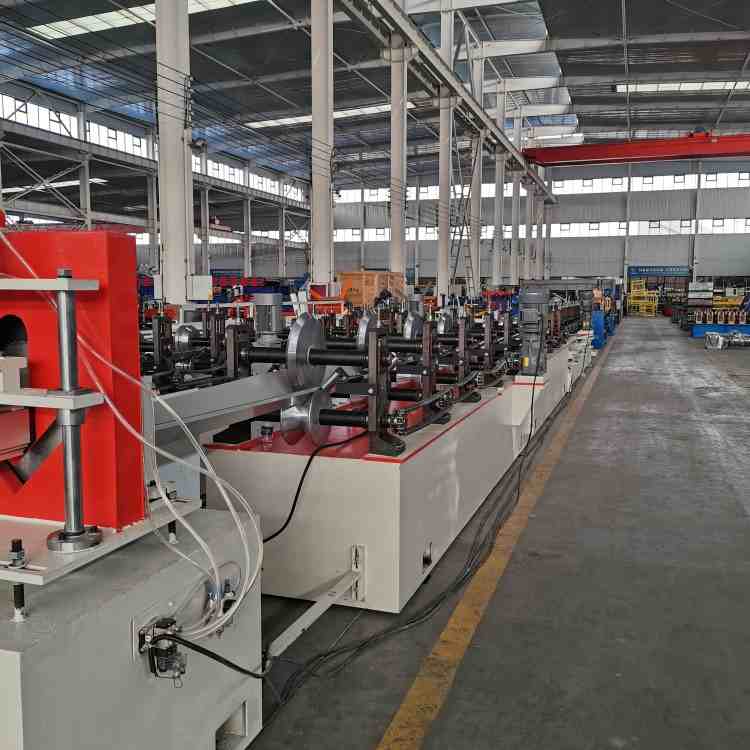

aluminum roller shutter door housing machine

Product Attributes :

Multi-Size Adjustable — Produce shutter box covers from 100mm to 250mm+ wide
Fully Automatic PLC Control — Touch screen operation, auto length measuring & cutting
Aluminum & Galvanized Steel Compatible — 0.6–0.8mm thickness range
Hydraulic / Servo Fly-Saw Cutting — High precision ±1.5mm tolerance
2-Piece / 3-Piece Box Cover Design — Switch between different box cover styles
High Speed Production — 10–12 m/min forming speed
Heavy-Duty One-Piece Frame — Rigid welded structure for stable operation
Gcr15 Chrome-Plated Rollers — Long service life, smooth surface finish

Product Description

Parameter	Specification
Applicable Material	Aluminum, Galvanized Steel, Pre-painted Steel
Material Thickness	0.6–0.8 mm
Box Cover Width Range	100–250 mm (customizable)
Forming Speed	10–12 m/min
Forming Stations	14–20 stations
Roller Material	Gcr15 steel, chrome-plated (HRC 58-62)
Main Motor Power	5.5–7.5 KW

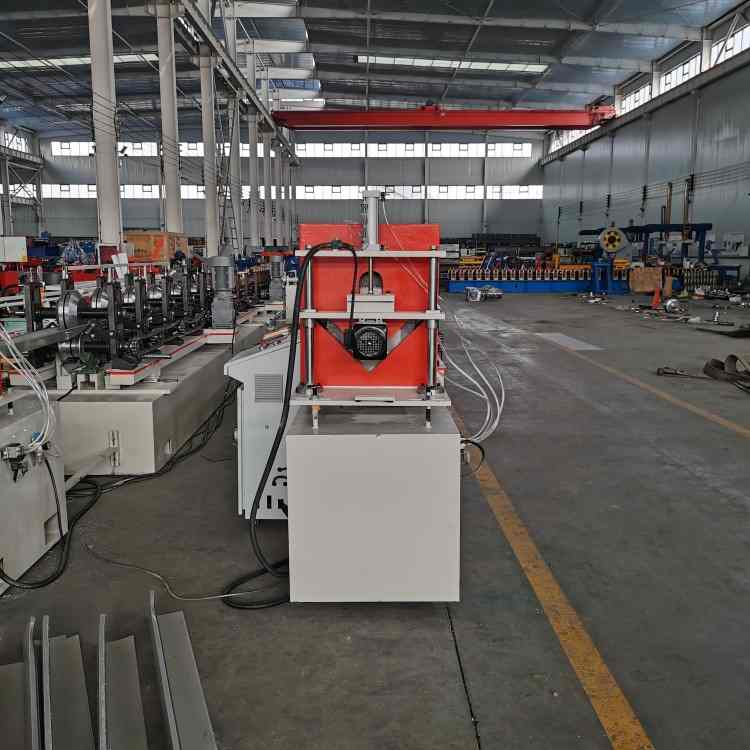

Cutting Type	Hydraulic post-cutting / Servo fly-saw
Cutting Blade Material	Cr12, quenched
Control System	PLC + Touch Screen (Siemens/Mitsubishi)
Decoiler Capacity	3–5 tons (manual/hydraulic)
Machine Weight	Approx. 3,000–5,000 kg
Warranty	12 months
