♦ Wall thickness of main forming machine: 50mm
♦ Thickness of feeding material: 1.5-3.0mm for G550 and 2-4mm for Q235
♦ Roller station: 14 rows+11row
♦ Diameter of shaft:95mm
♦ Motor power :30KW
♦Speed of forming 6-18m/min (according to punching)
1. Advantages
1) Produce purlins of different sizes without changing the rollers or pads.
2) Pre-cut design, different sizes do not need to be retained.
3) Simple operation and low maintenance cost
4) Unlimited size (any size within the machine range), simple size
5) Hand-punch holes at any position on the board side and flange side

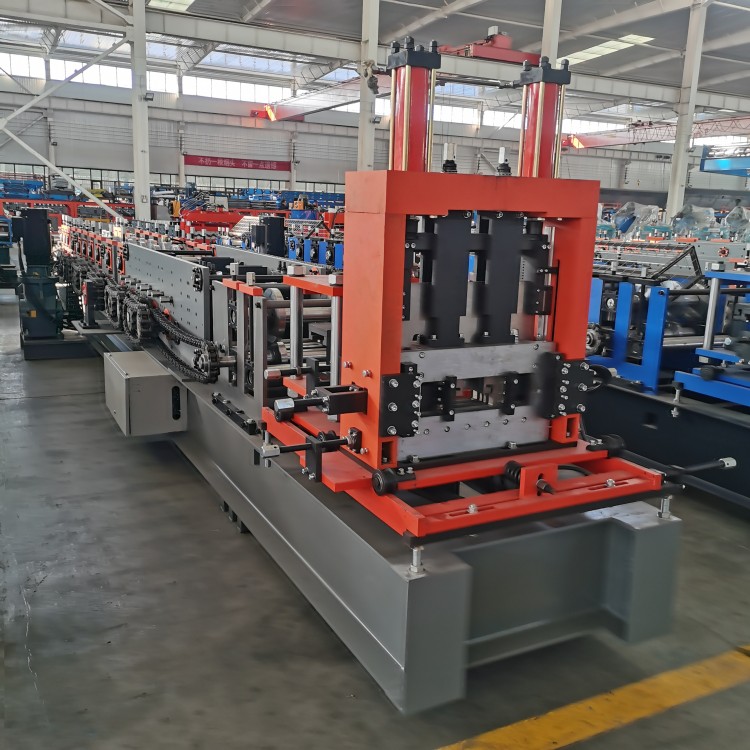

2.Main Forming Mill

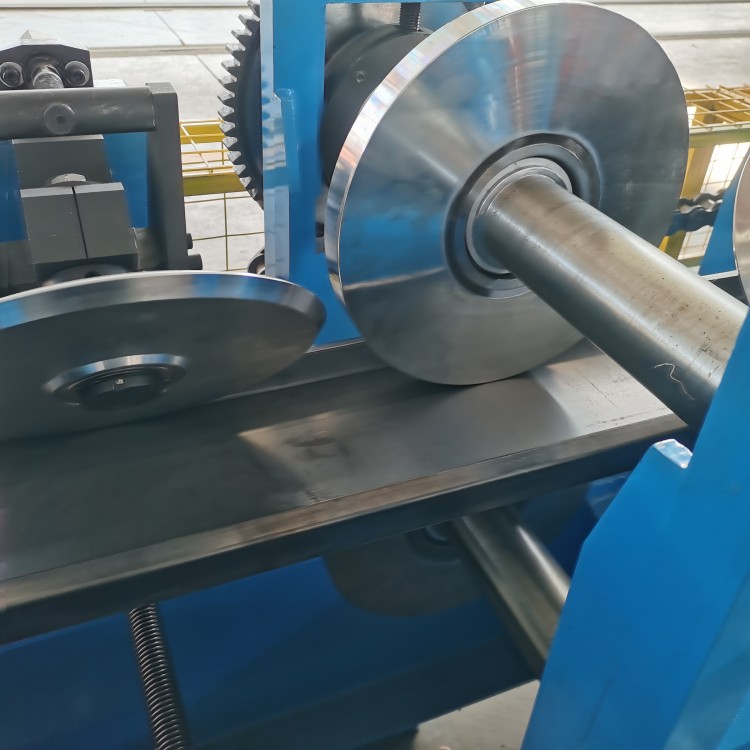

1）The roller is made of high-quality bearing steel GCr15/die steel Cr12 (=D3 steel), lathe, and heat treatment.
2）Using hard chrome coating or black treatment, long life.With feed rail, the bracket is welded by 450#H-shaped steel
3.PLC Control System
1）PLC control system (Inverter brand: Schneider Electric/controller/Delta,
2）Encoder brand: Koyo/Omron
3）Interchange of C-type purlin and Z-type purlin: manual change
4）But from C100-300 or Z100-300, PLC system automatically changes the size: touch a few slight changes on the screen
5）Enter the required production data on the touch screen
6）The machine will automatically control the quantity and cutting length.
7）Combination: PLC, inverter, touch screen, encoder, etc.
8）Fixed length performance: ≤±2 mm
9）Control voltage 24V
