Product Attributes :
Develivery time:30-45 days
Model:1000+1000
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.

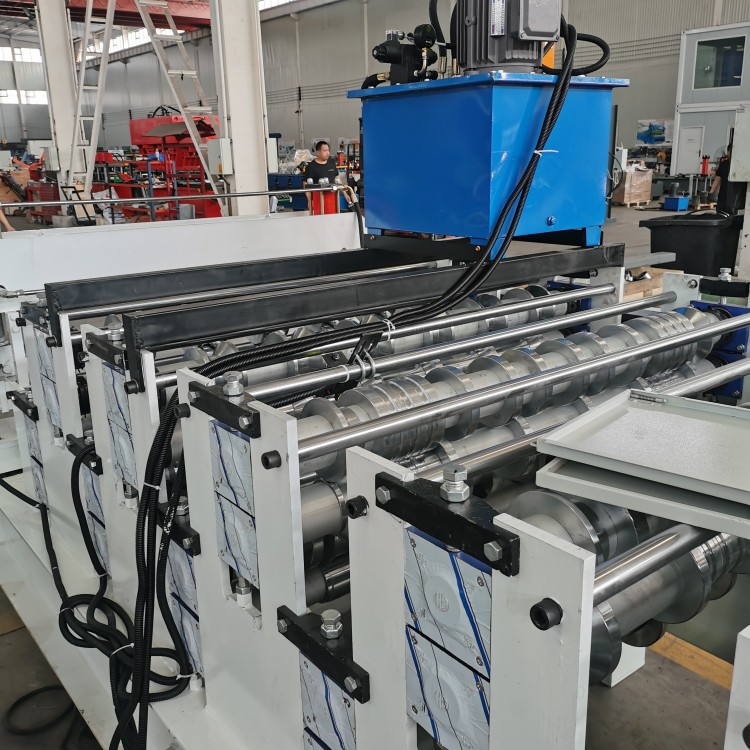

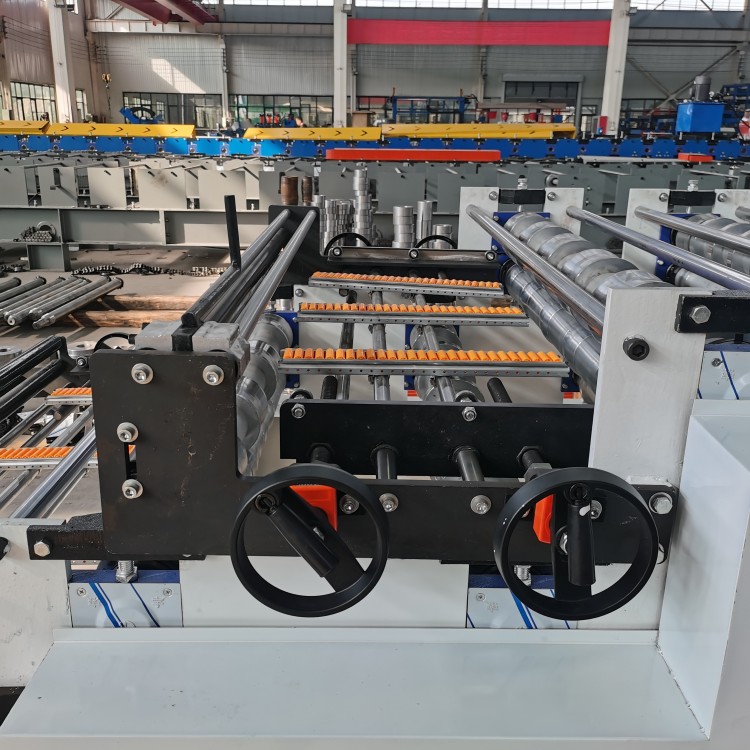

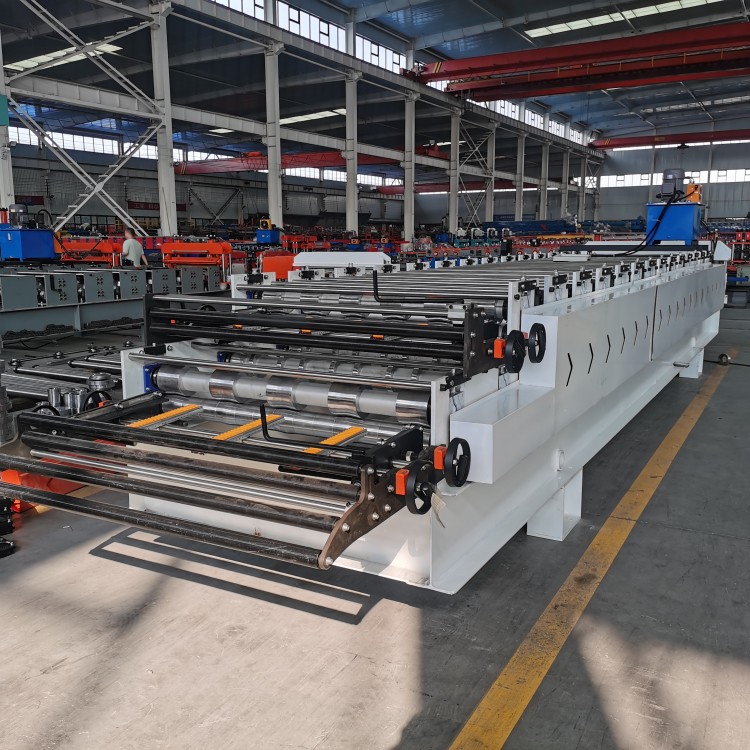

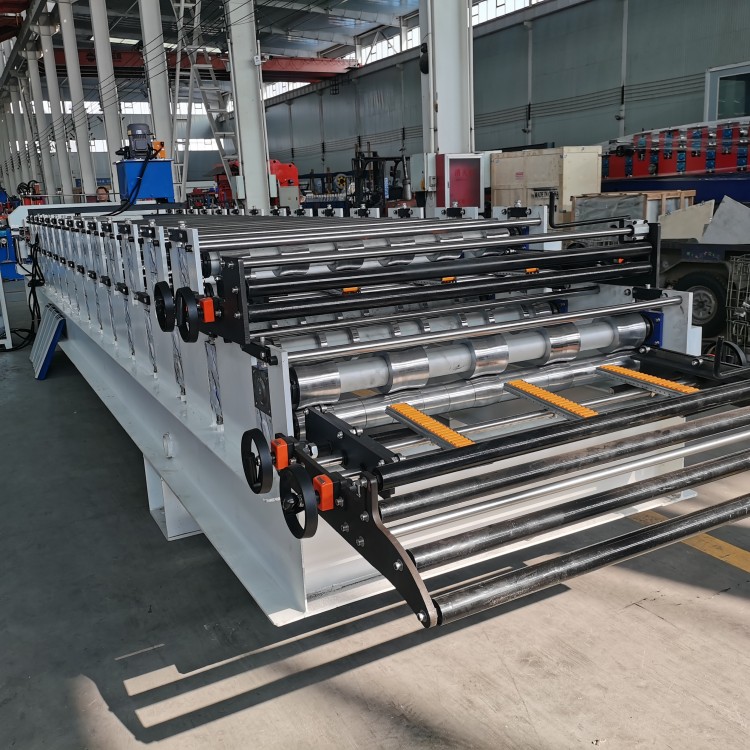

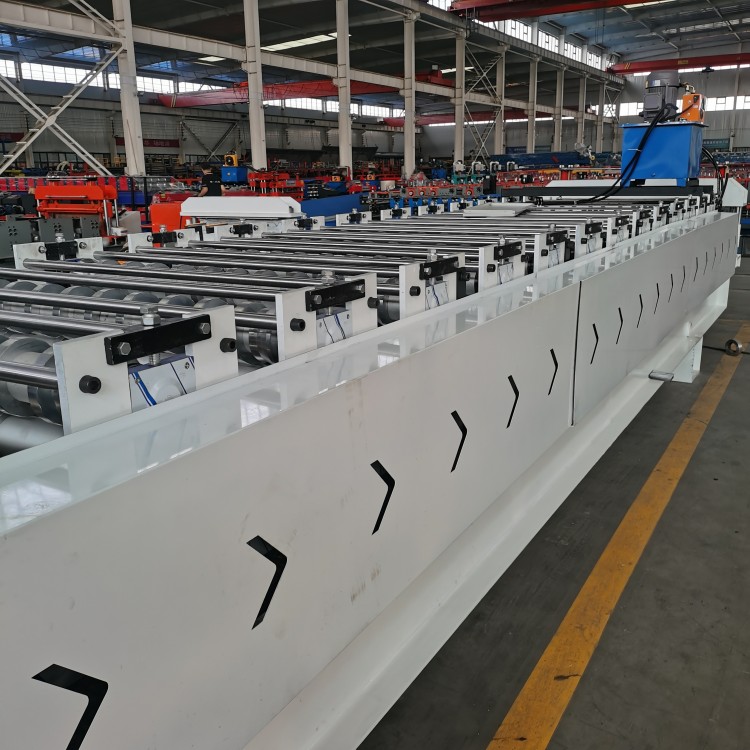

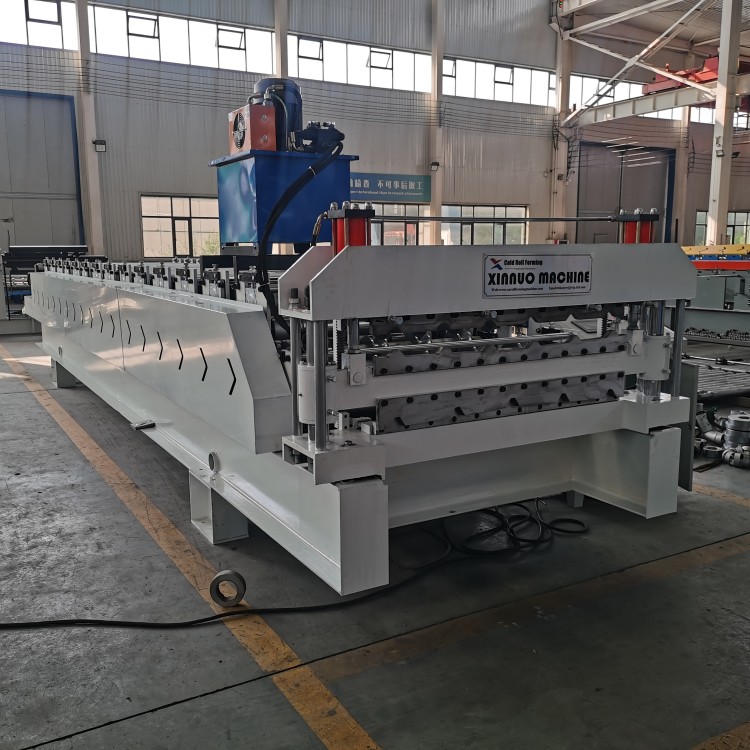

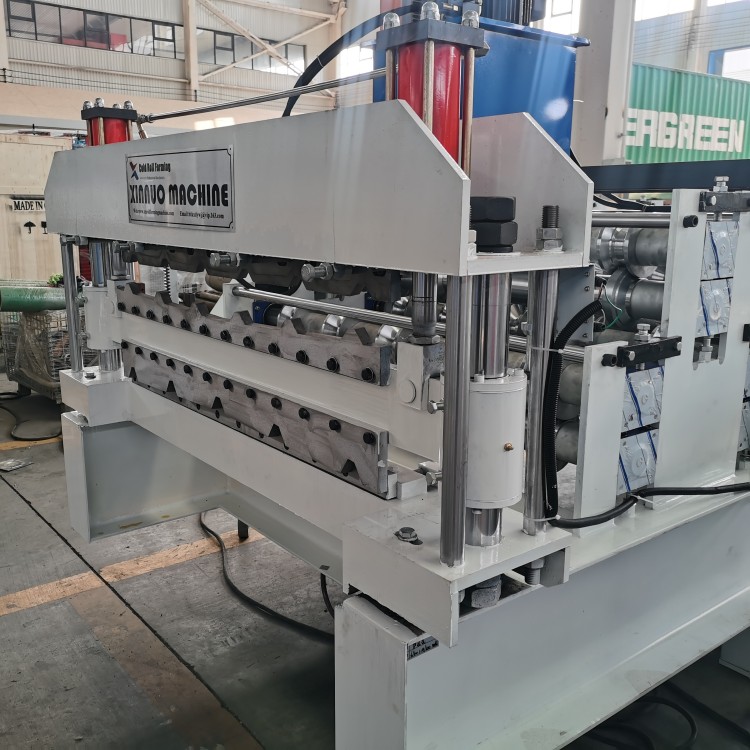

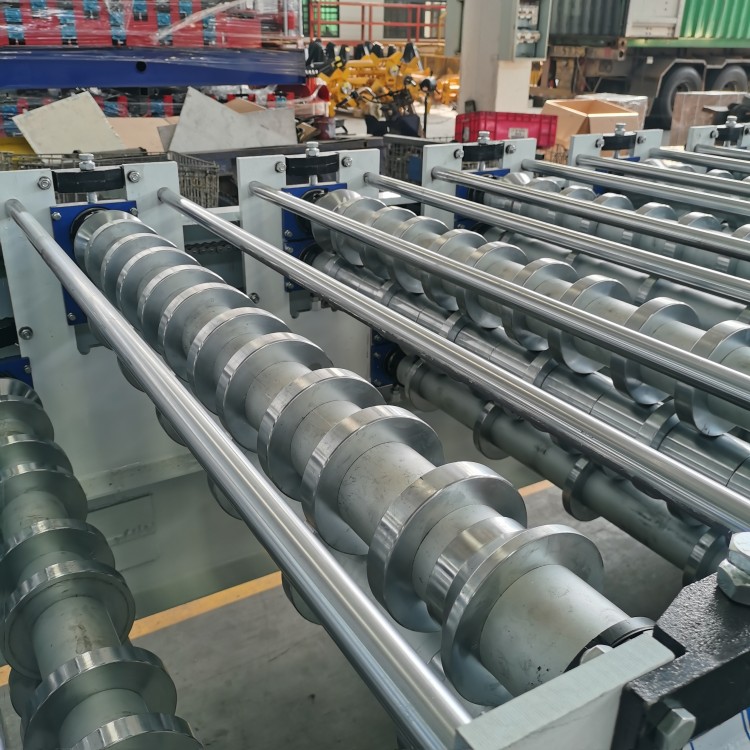

Double Layer Roofing Sheet Roll Forming Machine
The double layer roofing sheet roll forming machine is engineered for efficient production of two roofing profiles, within one compact system.
This machine integrates dual-layer roll forming technology, allowing manufacturers to switch between profiles quickly without changing equipment. It significantly reduces investment cost while improving production flexibility and efficiency.
Technical Parameters
Profiles: 1000+1000
Material Type: Galvanized Steel / Color Steel
Material Thickness: 0.3 – 0.8 mm
Forming Speed: 10 – 20 m/min
Roller Stations: 16 – 20 per layer
Control System: PLC Automatic Control
Power Supply: 380V / 50Hz / 3 Phase
The machine can be customized according to different profile designs and production requirements.
