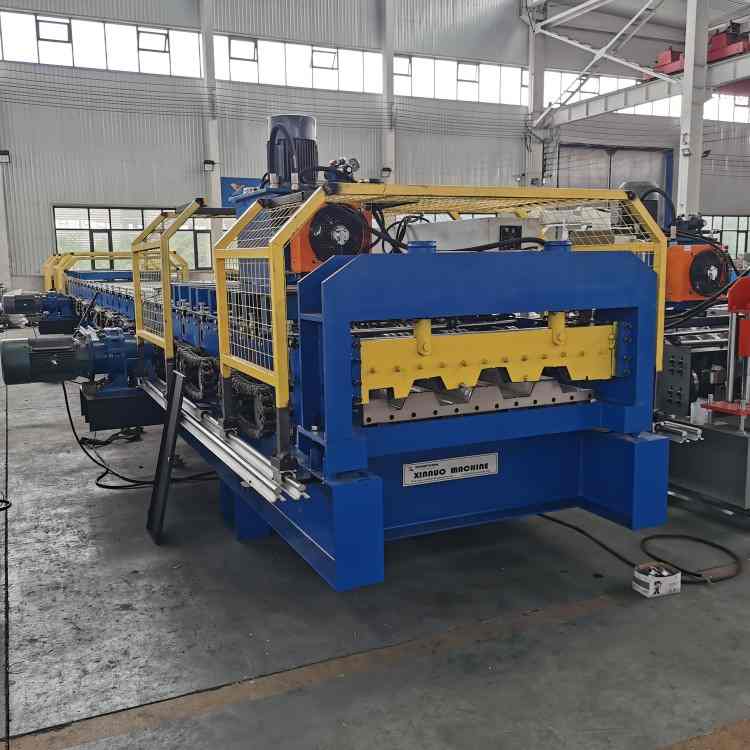

Floor Deck Roll Forming Machine
Steel Composite Floor Decking Machine - Heavy Duty Cold Roll Forming
The floor deck roll forming machine produces steel floor decking (metal deck) that serves as permanent formwork and tensile reinforcement for concrete floor slabs in steel-frame buildings. Deep ribs, thick steel and anti-pooling design make this the most technically demanding line of our cold roll forming machines.
Why Choose Our Floor Deck Machine:

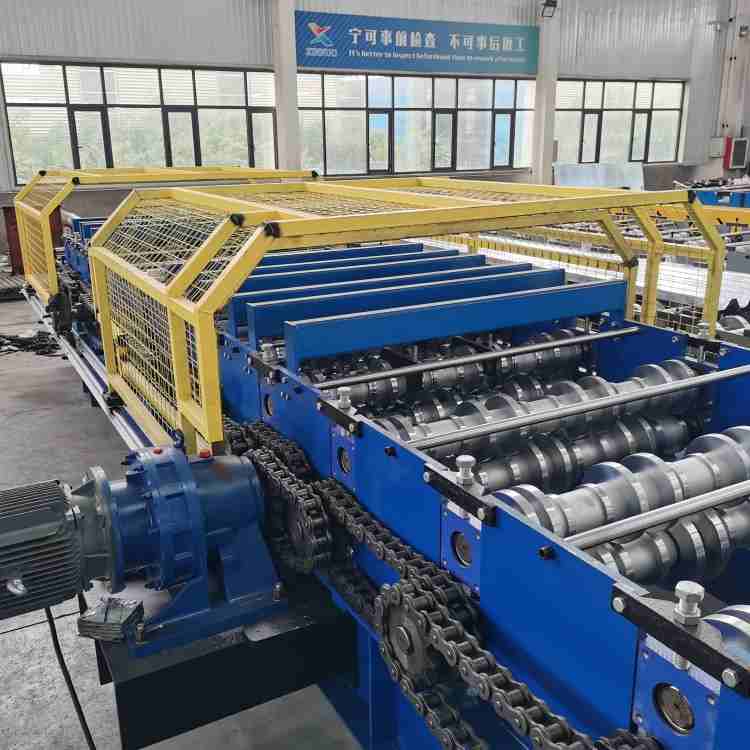

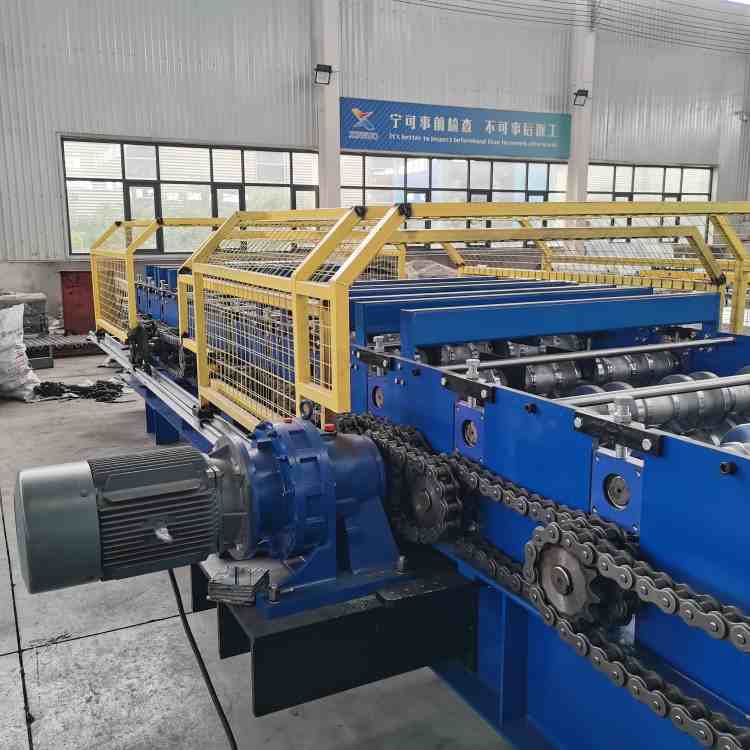

1. Dual 11KW Motors + 2-Inch Chain - No Stress on Heavy Gauge
Two 11KW motors with 2-inch chain drive handle 0.8-1.5mm thick steel with ease. Single-motor competitors struggle with deep-rib profiles.
2. 5-Layer Anti-Pooling System
Clutch + bearing-mounted oversized wheels + pressure reinforcement bars + gear drives + dual-cylinder floor shear. Eliminates material jamming and panel scratching - a proprietary design that prevents the #1 problem in floor deck forming.

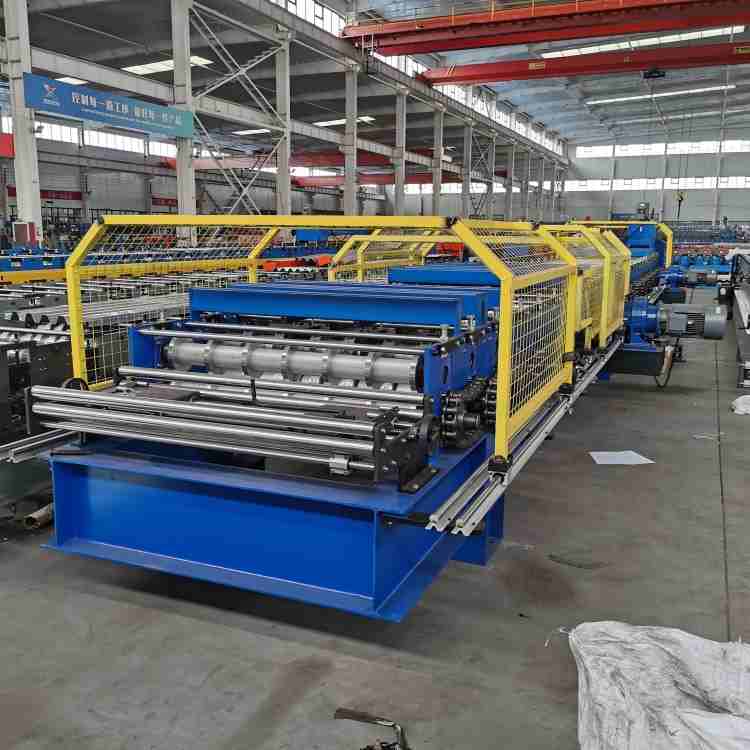

3. Laisteel 400-450H Frame, 10mm Wing Thickness
Laisteel H-beam frame with 10mm wings vs. industry standard 8mm - 25% more rigidity, longer machine life. 20mm mid-plate carries dual-motor torque.

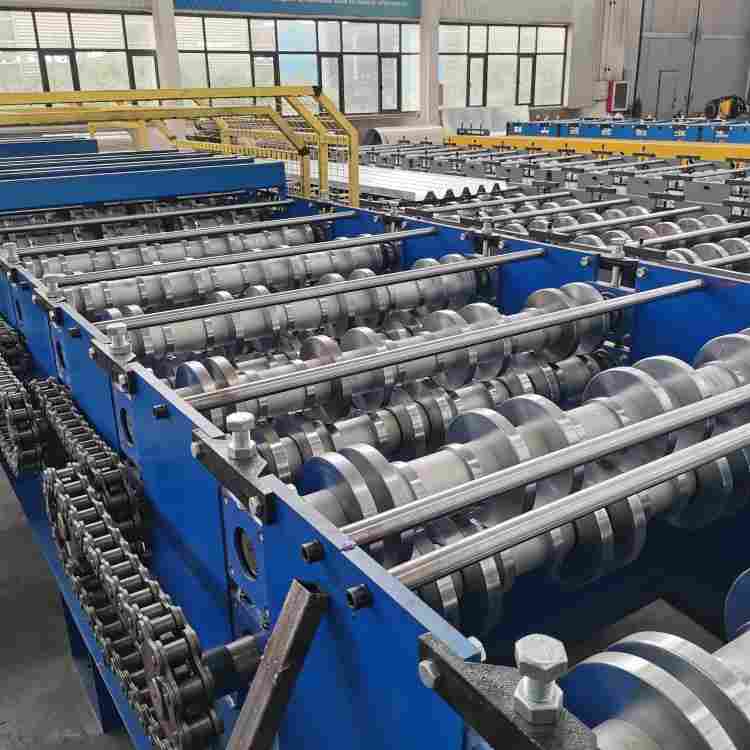

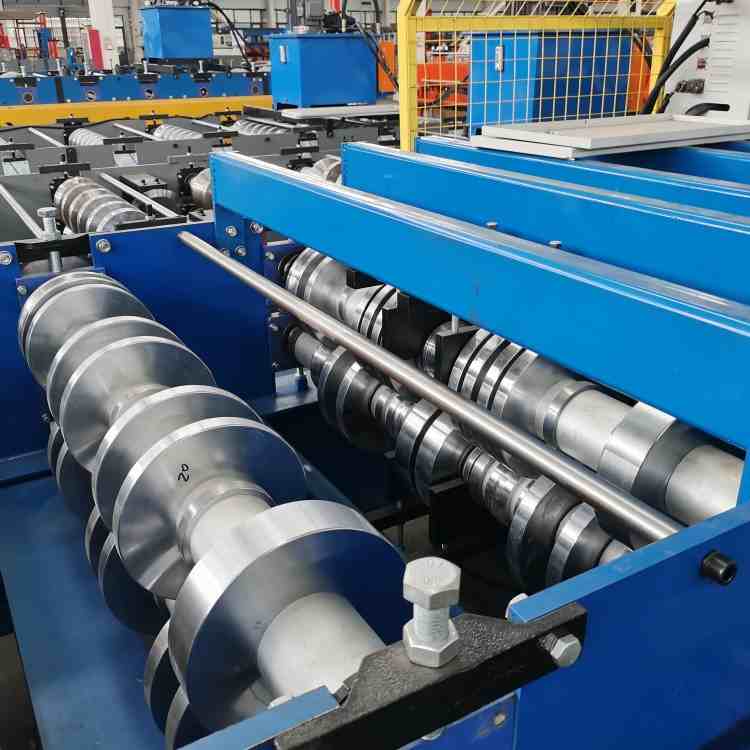

4. 7-Step Forged Mold Wheel, HRC 45-50 Degrees
Forged 45# steel rollers: rough turn, quench, finish turn, keyway, polish, chrome plating. Harder and longer-lasting. 100mm round bar shaft, precision ground for flat, smooth output.

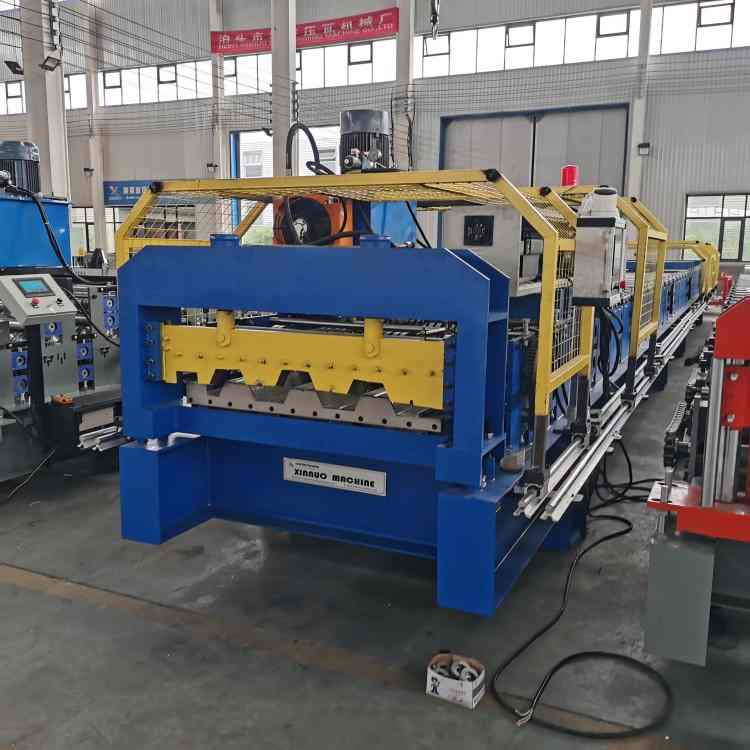

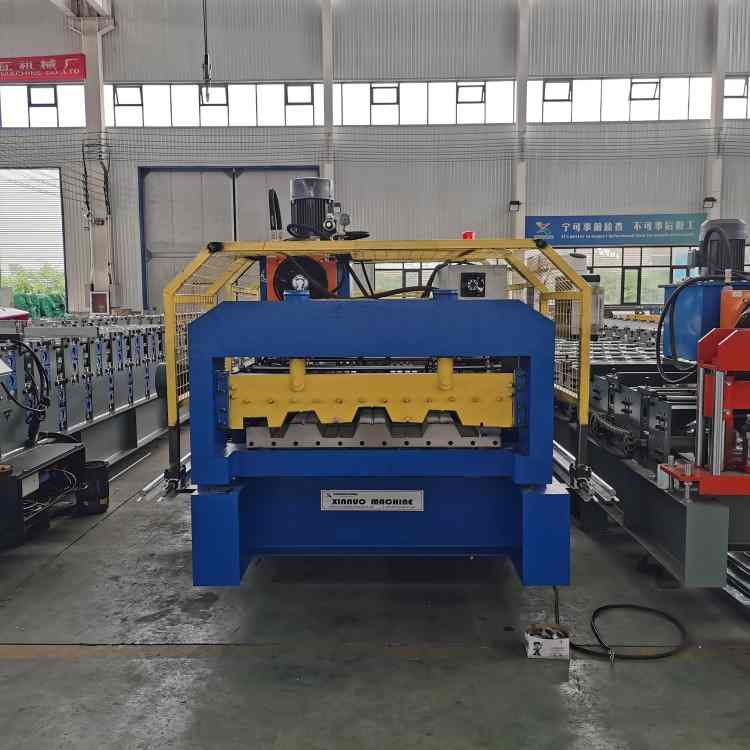

5. Dual-Cylinder Floor Shear, Balanced Force
Two oil cylinders for balanced cutting force; floor-mounted shear lets finished panels drop to the stacking area by gravity - less labor, safer operation. Optional 3-piece blade (perfect profile) or 2-piece blade (no waste).
6. 138 Countries, 200 Units/Year, ISO + CE
Exported to USA, France, UK, Mexico, Turkey, India, Russia, Philippines, Brazil, Indonesia and more. Full certification: ISO, CE, high-tech enterprise, multiple patents.
Technical Parameters (standard machine):
- Profile options: 688 / 750 / 780 / 820 (closed) / 870 / 900 / 915 / 990 / 1000 / 1025
- Rib height: 50-76mm (deep profiles up to 153mm on request)
- Forming rows: 20-34 rows (standard 22-27)
- Frame: Laisteel 400-450H, wing thickness 10mm, mid-plate 20-25mm
- Shaft: 90-115mm precision ground
- Main motors: 2 x 11KW (2 x 15KW for heavy profiles)
- Chain: 2-inch external heavy duty chain
- Shear: dual-cylinder floor shear with hydraulic power unit
- Material: 0.8-1.5mm color steel / galvanized sheet
- Control: Delta PLC system
- Line length: 22m complete (forming unit 14.5m, A-frame decoiler, output rack)
Applications:
Steel-frame and high-rise buildings, composite floor slabs, elevated parking structures, industrial plants, warehouses - any project requiring steel deck as concrete formwork.
Complete Line Includes:
A-frame decoiler (5-ton capacity) + forming main unit + hydraulic shear + PLC control cabinet + output rack. On-site installation and training by our service engineers, 24-hour online support, detailed wiring diagrams and video tutorials.
Contact us for the right floor deck machine for your market.
