Glazed Tile Roll Forming Machine
Metal Antique Roof Tile Forming Machine - Factory Direct

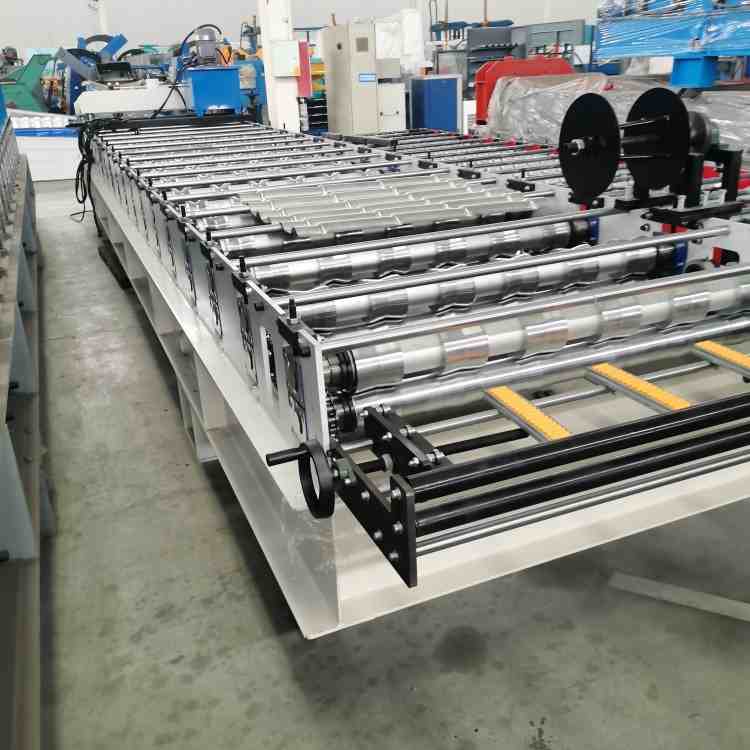

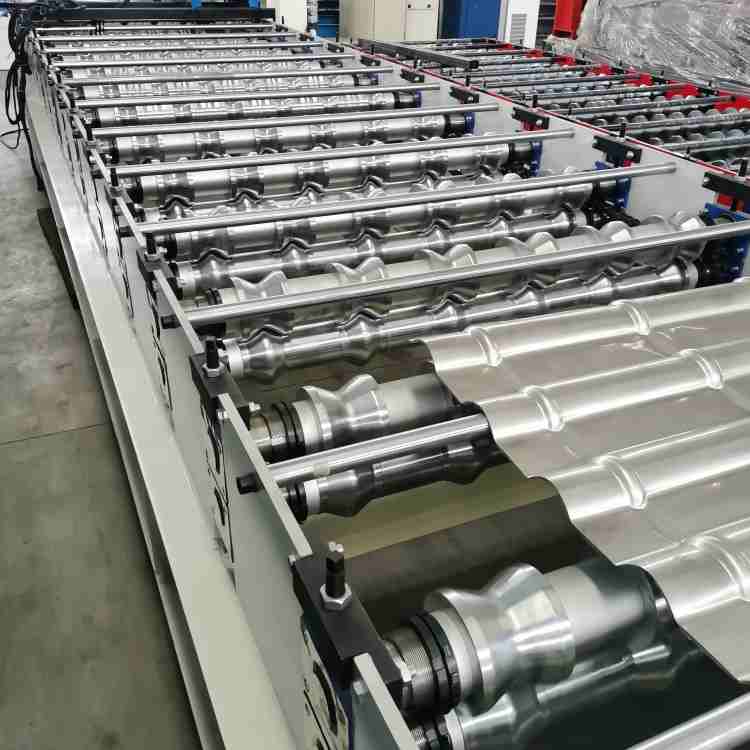

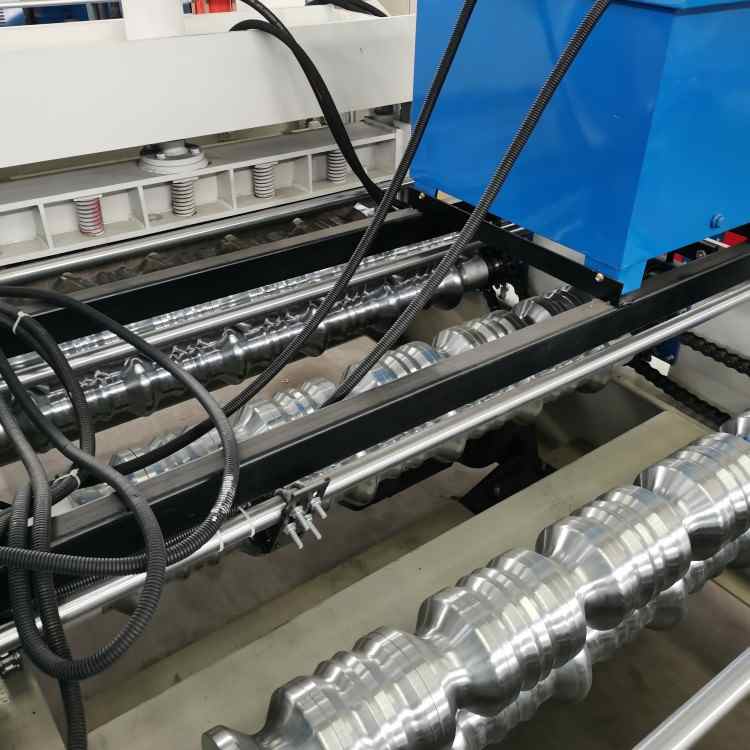

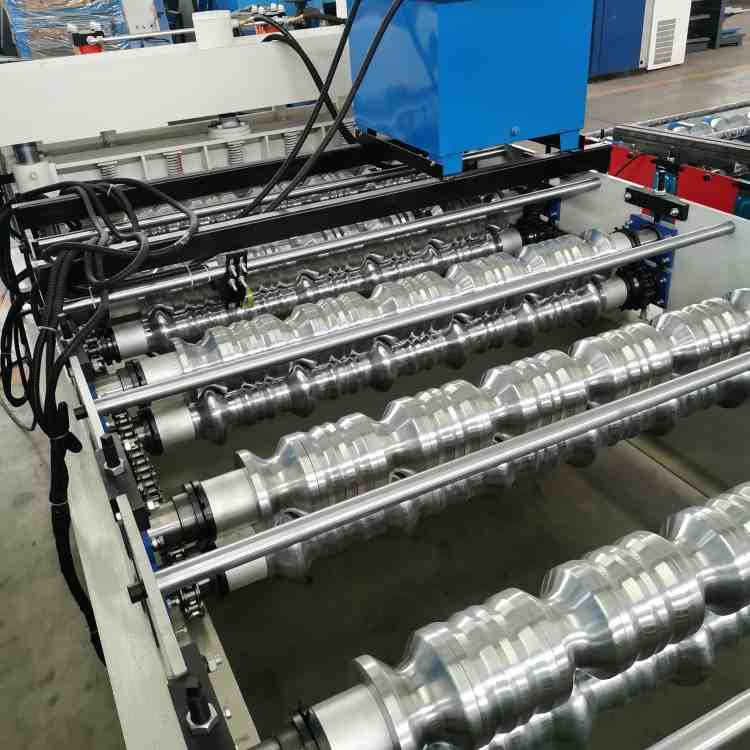

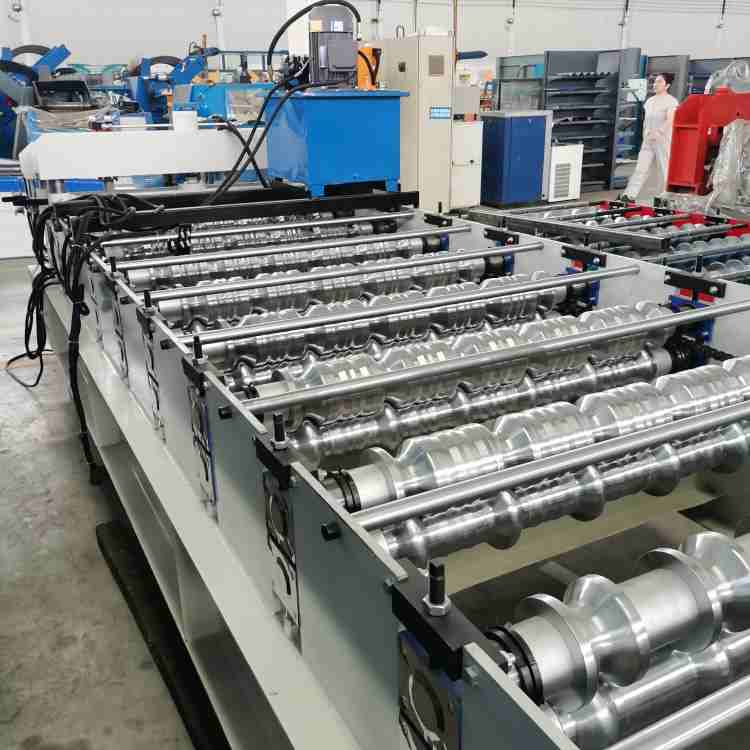

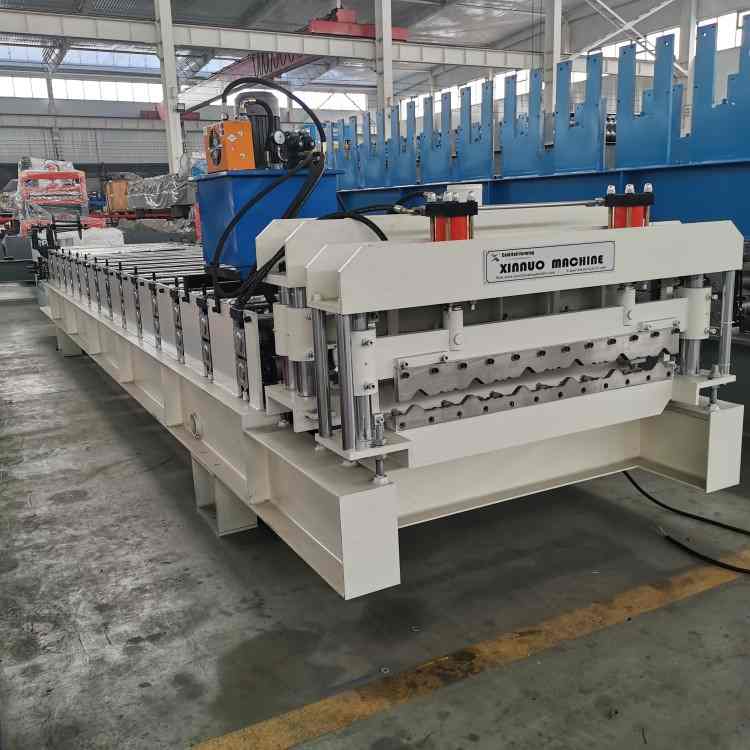

The glazed tile roll forming machine is specially designed for producing metal antique-style glazed roof tiles. It combines continuous arc roll forming with an extra pitch stamping device, creating segmental texture on each wave peak - just like traditional Chinese glazed tiles, perfect for villa roofs, antique buildings, temples, scenic areas and New Chinese style architecture.
Key Features:
- Servo motor + bevel gear transmission (optional): pitch positioning accuracy ±0.5mm, over 5 times more precise than clutch-type machines
- 40% quieter than chain transmission, smoother and more durable operation

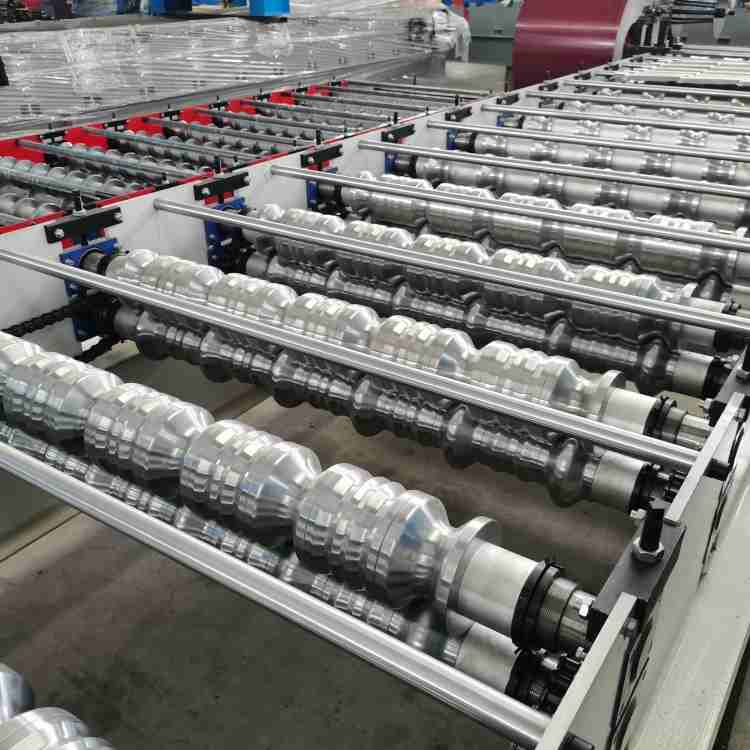

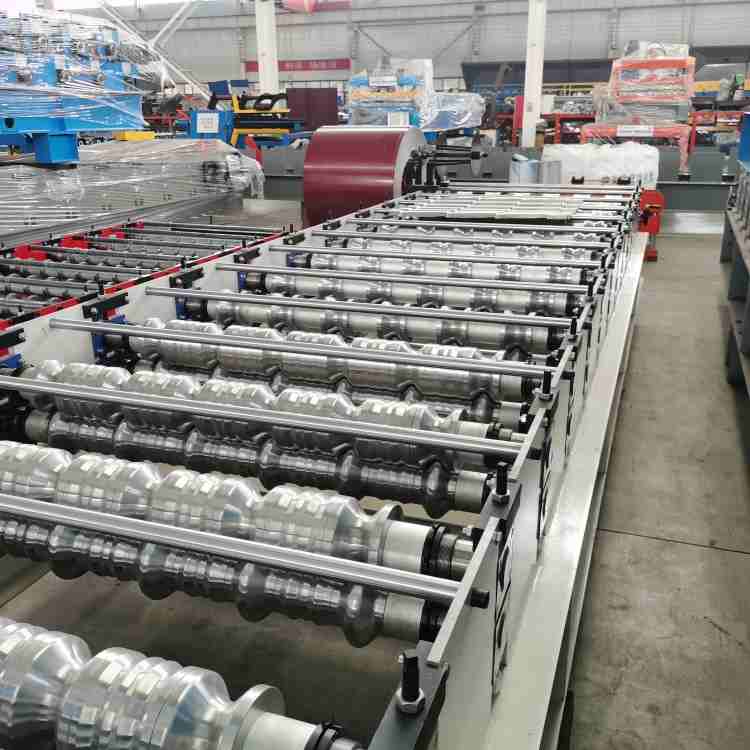

- Forged 45# steel rollers, heat treated to HRC45-50, 7-step manufacturing process
- 40Cr precision ground shafts for stable running
- Frame machined by CNC gantry milling with 0.05mm flatness
- CO2 shielded welding, shot blasting and electrostatic powder coating surface treatment
- Customizable pitch stamping dies - 15+ years of design experience
- Options: standard motor + chain drive, or servo + gear drive; 800mm / 1000mm widths; 5-7 peaks; dual-use for resin tile available
Technical Parameters (800mm / 5-peak model):
- Effective width: 800mm
- Feeding width: 1000mm
- Peak height: 28mm
- Pitch: 200mm
- Number of peaks: 5
- Forming stations: 12-15
- Frame: 300H-350H
- Shaft diameter: 70-75mm
- Main motor: 4KW-5.5KW
- Suitable material: 0.3-0.8mm color steel sheet
Applications:
Villa & residential roofs, antique/Chinese style buildings, temples and shrines, tourist scenic areas, resort hotels, new rural construction.
Why Choose Us:
- Factory direct manufacturer with 15+ years of roll forming machine production
- Exported to 50+ countries: Southeast Asia, Middle East, Africa, South America, Europe
- Full after-sales support: installation guidance, operation training, spare parts
- ISO certified production, strict quality control on every machine
