♦ Wall thickness of main forming machine: 50mm
♦ Thickness of feeding material: 1.5-4.0mm for G550 and 2-4mm for Q235

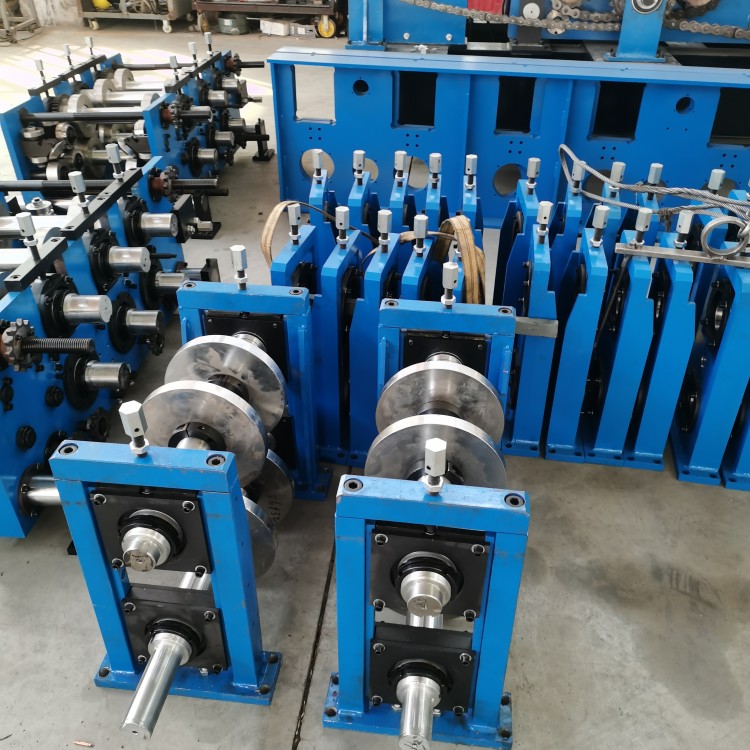

♦ Roller station: 14 rows+11rows
♦ Diameter of shaft:100mm
♦ Motor power :30KW
♦Speed of forming 6-18m/min (according to punching)

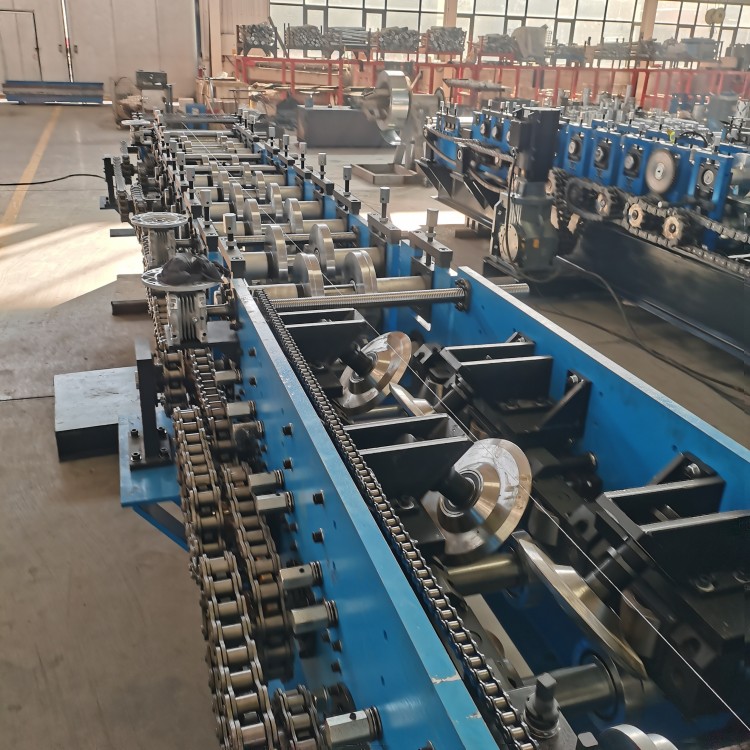

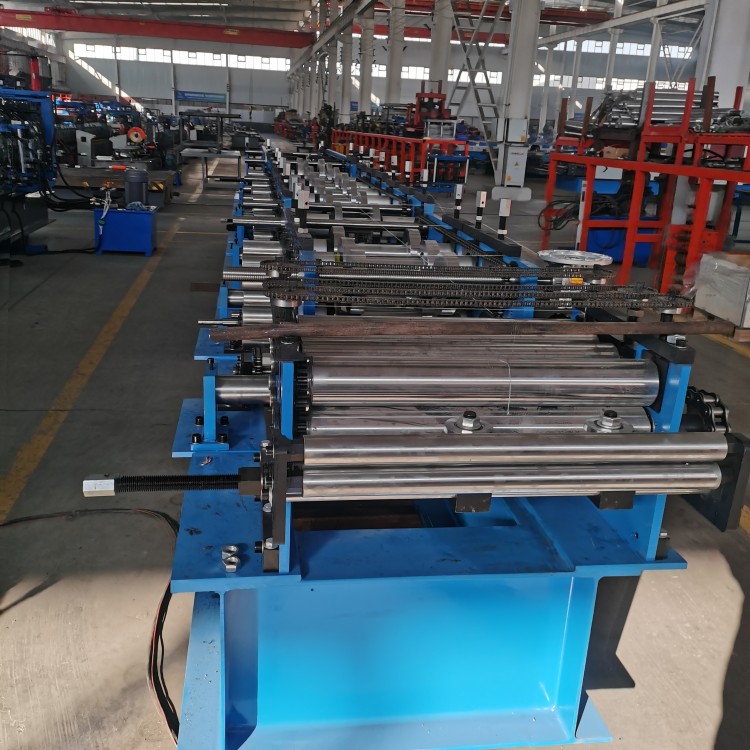

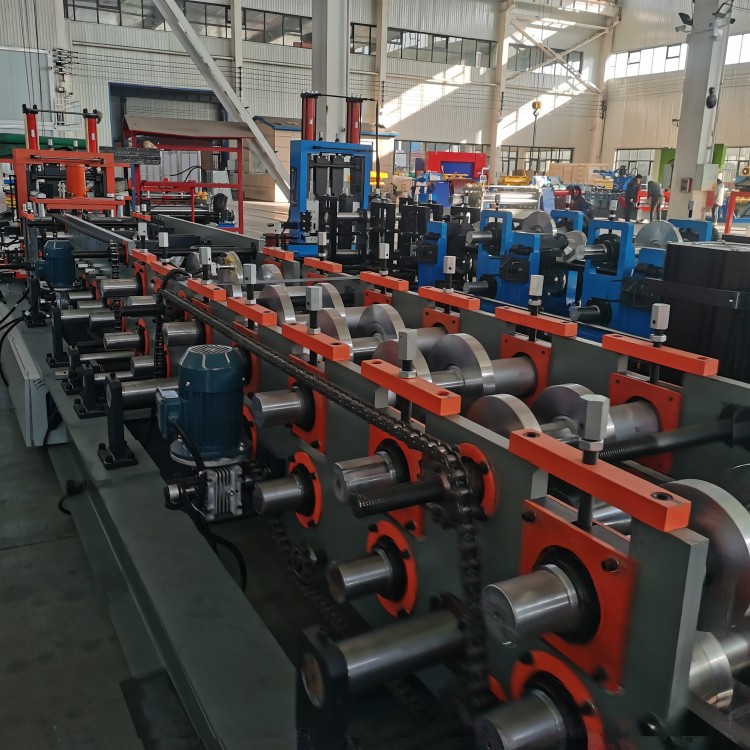

HEAVY DUTY Design CZ Interchangeable Purlin Machine
Popular in India and Bangladesh and South Asia market,welcomed by big steel structure companies.
(Max thickness 4 mm, Max width: 400 mm)
1.Main features of HEAVY DUTY Design CZ interchangeable purlin machine
The advantages of CZ interchangeable purlin machine are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.Patented universal cutter,no need changing cutter for different size.
3.Thickness range: 1.5-4 mm, Width range: 100-400 mm
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side

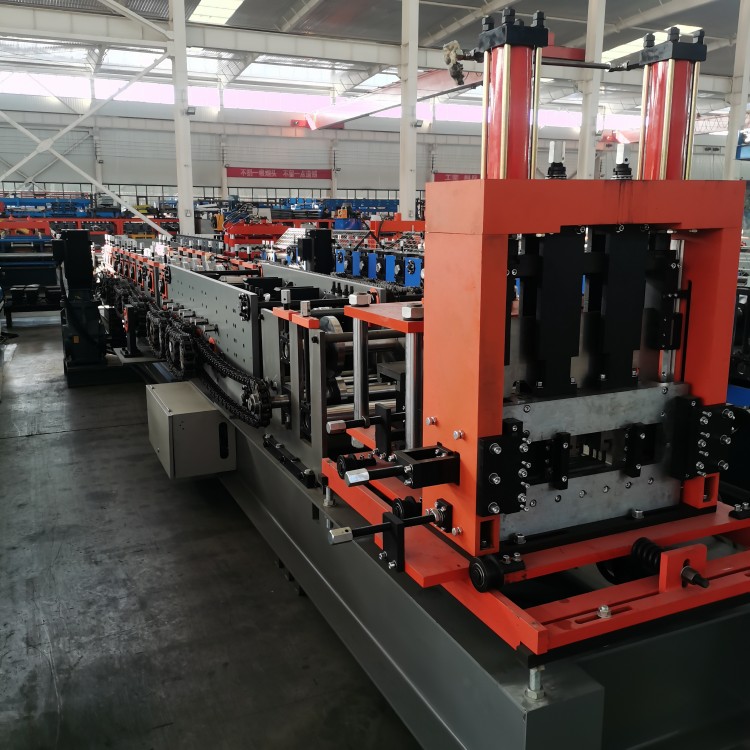

2.HEAVY DUTY Design CZ interchangeable purlin machine hydraulic pre-cutter
