CNC press brake 100T x 3200mm with Delem control, electro-hydraulic servo sync, ±0.05mm bending accuracy, automatic back gauge. Sheet metal bending machine factory direct, CE certified.

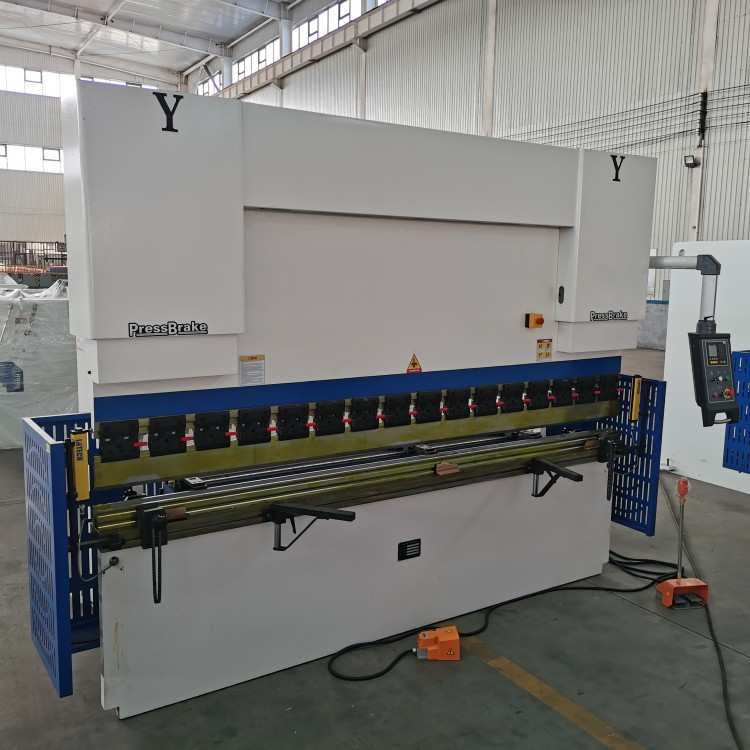

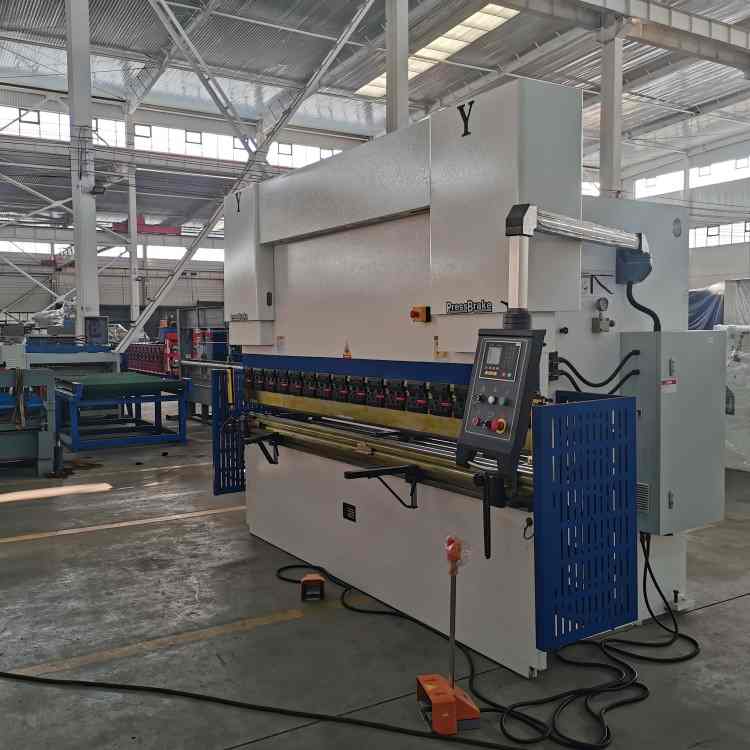

CNC Press Brake
Hydraulic Sheet Metal Bending Machine - Precision CNC Bending
The CNC press brake is a hydraulic sheet metal bending machine designed for high-precision, high-efficiency metal forming. Equipped with a Delem CNC control system and electro-hydraulic servo synchronization (Y1/Y2 axes), it delivers accurate, repeatable bends for sheet metal fabrication - ideal for metal furniture, enclosures, electrical cabinets, auto parts, construction panels and general fabrication shops.
Key Features:
- Electro-hydraulic servo synchronized Y1/Y2 axes: stable, parallel bending with no torsion bar deflection

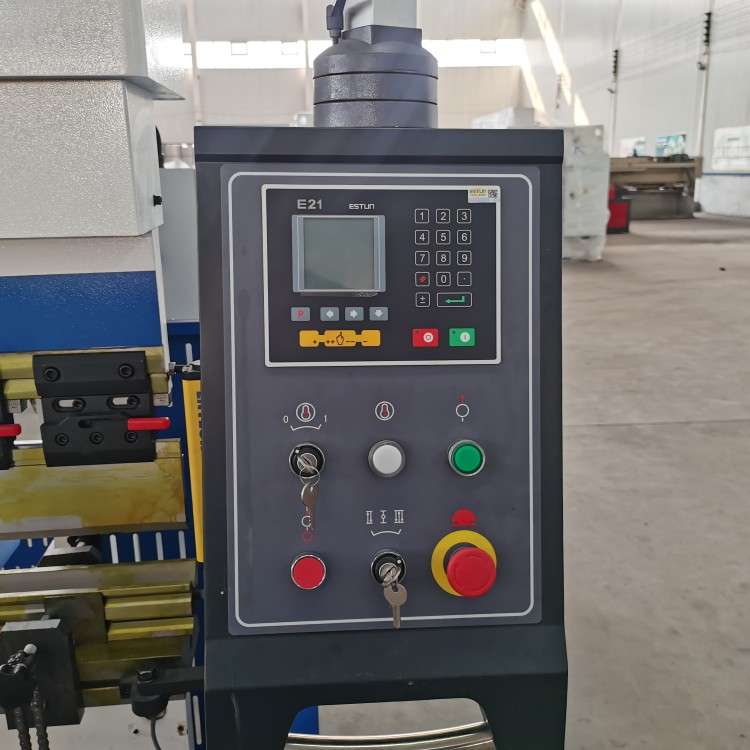

- Delem CNC controller with color touch screen: simple programming, 3D graphic simulation (options: Delem DA41s / DA53T, ESA S530, Estun E21)

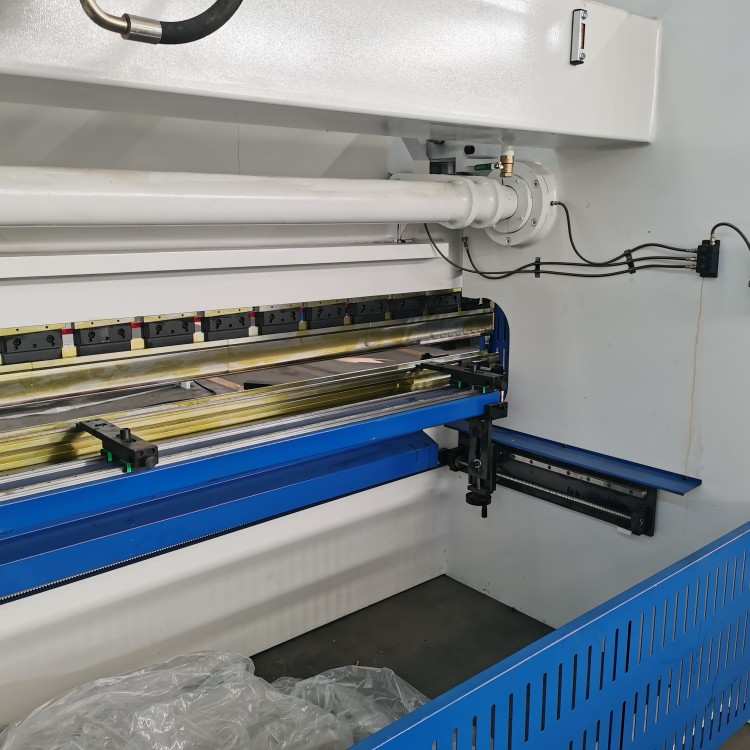

- Automatic back gauge (X axis, optional R / Z1 / Z2 axes): fast, accurate positioning, positioning accuracy ±0.01mm
- Bending repeatability ±0.05mm for consistent part quality
- Worktable crowning compensation system: uniform bending angle across the full length

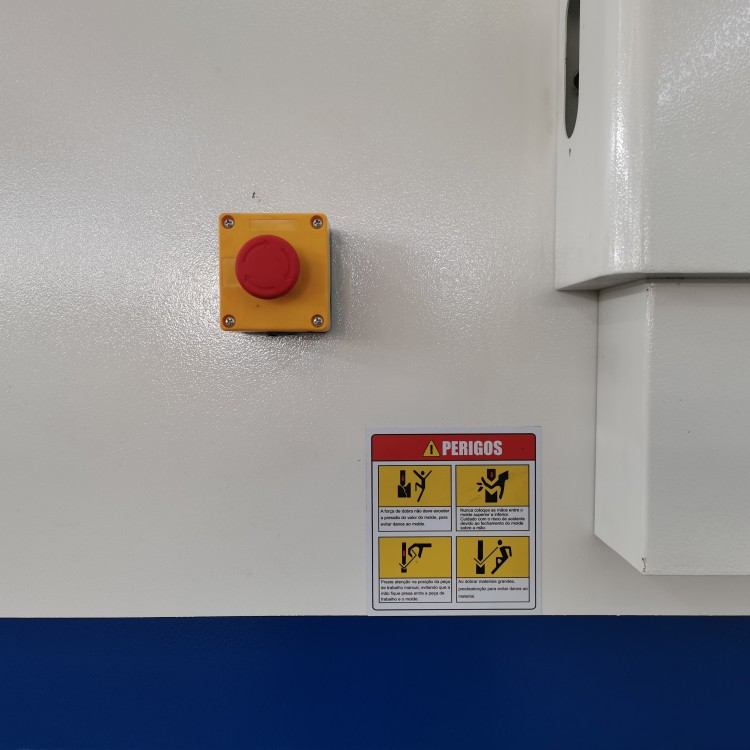

- European standard safety: CE certified, front safety light curtain, rear protective fence
- Heavy-duty welded frame, stress-relieved, machined by large gantry milling
- High-quality German/Hydac hydraulic system components, low noise, low leakage
- Optional: electric servo drive version - 50-60% energy saving, 60% quieter, higher efficiency
Technical Parameters (100T x 3200mm standard):
- Bending force: 100T (available 40T - 600T)
- Bending length: 3200mm (available 1600 - 6000mm)
- Control system: Delem DA41s (optional DA53T / ESA / Estun)
- Axes: Y1, Y2, X (3+1); optional R, Z1, Z2
- Back gauge travel: X 600mm, R 150mm
- Stroke: 120mm
- Throat depth: 400mm
- Open height: 370mm
- Main motor: 7.5KW
- Oil pump flow: 28L/min
- Positioning accuracy: ±0.01mm
- Bending repeatability: ±0.05mm
Applications:
Sheet metal bending for electrical cabinets, metal furniture, HVAC ducts, steel doors, auto parts, agricultural machinery, construction and roofing accessories, stainless steel kitchenware and more.
Why Choose Us:
- Factory direct manufacturer with years of press brake production experience
- Standard models: WC67K / WE67K series, torsion bar sync and servo sync options
- Full set of bending dies (punch & die) and back gauge included
- CE certified, exported to Europe, America, Middle East, Southeast Asia and Africa
- Complete after-sales support: installation, training, spare parts, remote technical service
Contact us for the best price and the right press brake configuration for your workshop.
