multi profile roll forming machine

Triple Layer Roll Forming Machine

3-in-1 Metal Roof Tile Machine - Glazed Tile + Arc Panel + Trapezoid Panel

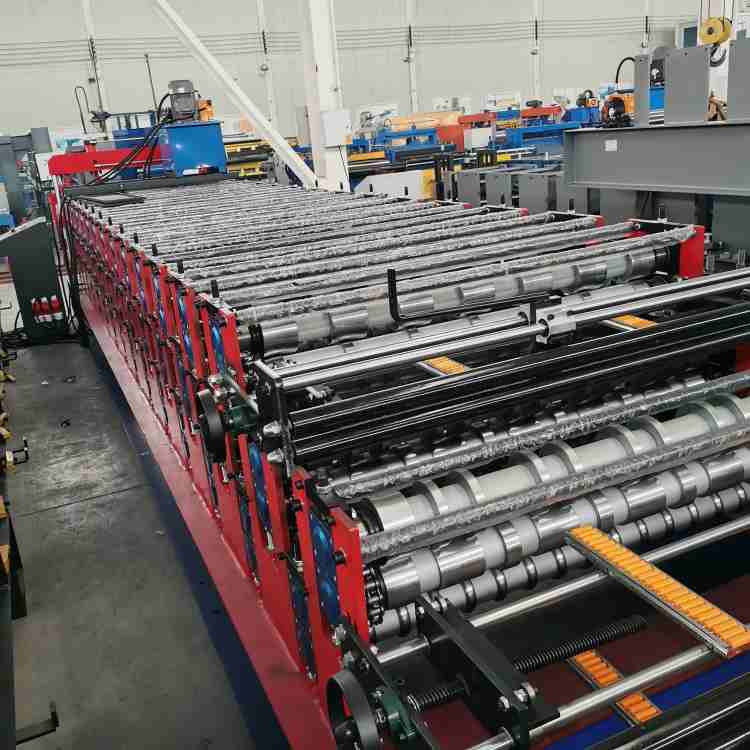

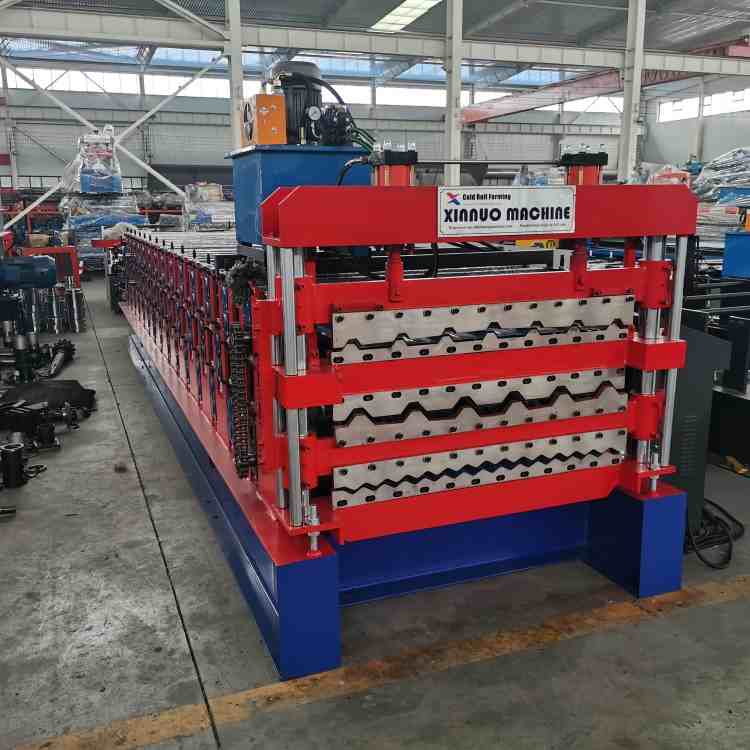

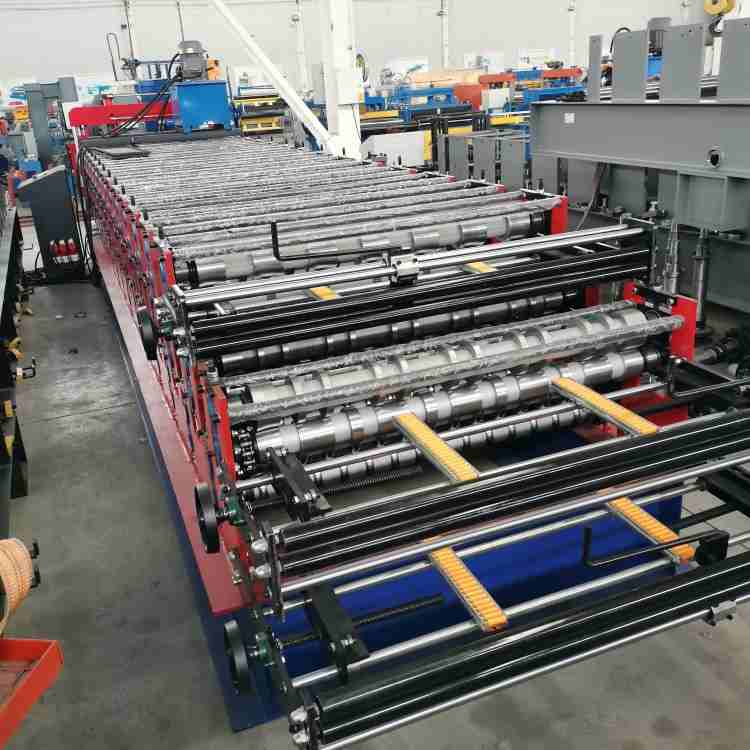

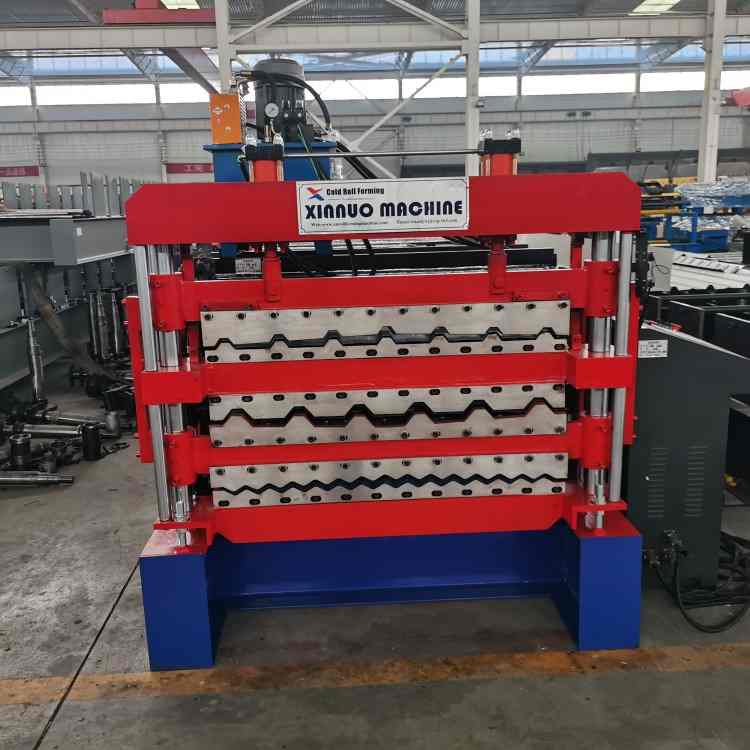

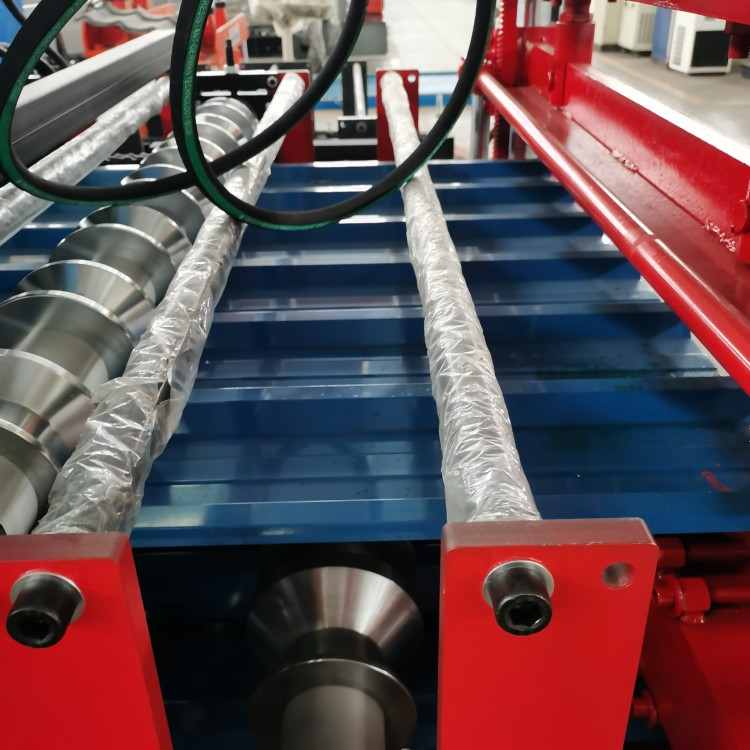

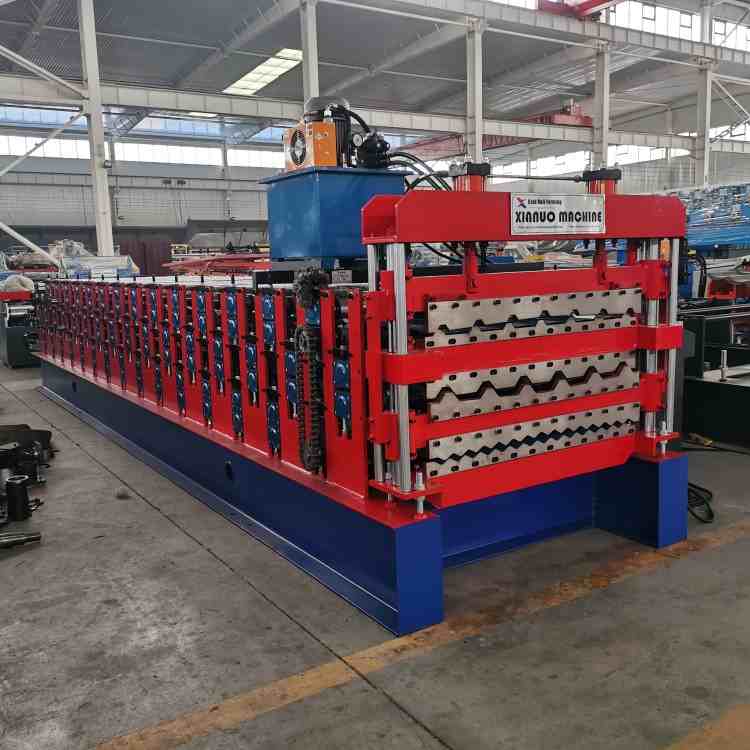

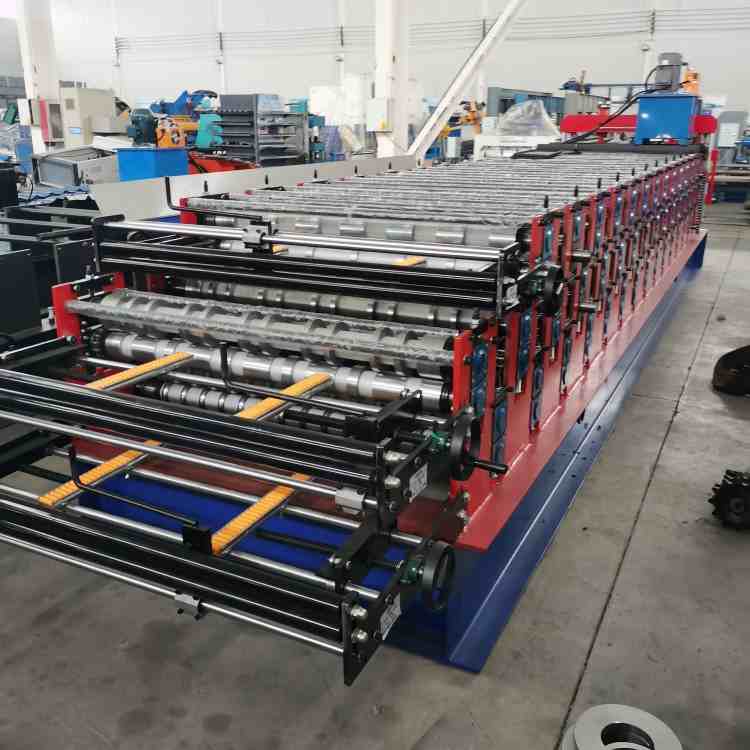

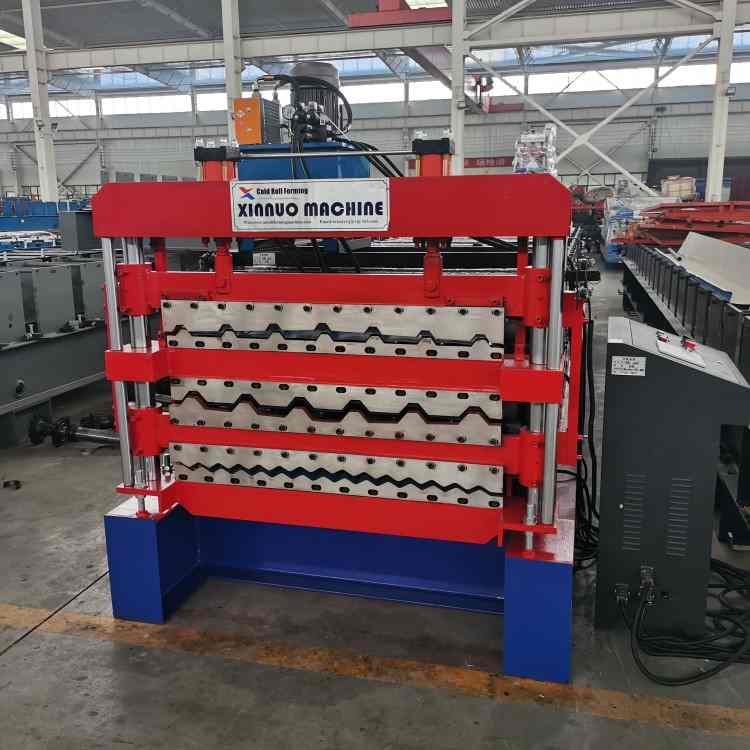

The triple layer roll forming machine integrates three complete forming units (glazed tile, arc wave panel and trapezoidal panel) vertically stacked in one heavy-duty frame. By simply switching the material feeding path, you can produce three different roof profiles on a single machine - no extra machines, no extra space.

Why Choose a Triple Layer Machine:

- One machine, three profiles: 7-peak glazed tile (1100mm) + 15-wave arc panel (1064mm) + 9-peak trapezoidal panel (1100mm) - covers all mainstream roof panel types

- Saves 40-60% floor space compared to three single machines

- Total investment about 55-65% of buying three single machines

- Profile switch in just 5-15 minutes by changing material path

- Balanced 14+14+14 forming stations for consistent quality on every profile

- 400H heavy-duty frame, 80mm precision shafts, 7.5KW main motor

- Suitable for 0.3-0.8mm color steel sheets

Key Features:

- Forged 45# steel forming rollers, hardened to HRC45-50, 7-step manufacturing process

- 40Cr precision ground shafts for smooth, stable running

- Frame machined by CNC gantry milling with 0.05mm flatness

- CO2 shielded welding, shot blasting and electrostatic powder coating

- PLC control system with easy profile switching

- Full set of forming dies included for all three profiles

- Optional: arching (curving) station, servo motor drive, resin tile compatibility

Technical Parameters (standard configuration):

- Machine type: Triple-layer (3 decks stacked vertically)

- Layer 1: Glazed tile profile, 1100mm effective width, 7 peaks

- Layer 2: Arc wave profile, 1064mm effective width, 15 waves

- Layer 3: Trapezoidal profile, 1100mm effective width, 9 peaks

- Feeding width: 1250mm

- Forming stations: 14+14+14

- Frame: 400H

- Shaft diameter: 75-80mm

- Main motor: 7.5KW

- Drive: heavy duty double chain

- Suitable material: 0.3-0.8mm color steel / galvanized sheet

- Profile switching time: 5-15 minutes

Applications:

Ideal for building material dealers, roofing contractors and profile manufacturers who need to offer glazed tile, arc wave and trapezoid panels for villas, industrial plants, warehouses, agricultural buildings and antique-style architecture - all with one machine.

Why Choose Us:

- Factory direct manufacturer with 15+ years of roll forming machine production

- 7 triple-layer machine blueprints production-proven since 2014

- Exported to 80+ countries worldwide

- Full after-sales support: installation guidance, operation training, spare parts

- Custom configurations available: different profiles, widths, servo drives

Contact us for the best price and a tailored solution for your market.
