Multi-Size Adjustable — Produce shutter box covers from 100mm to 250mm+ wide
Fully Automatic PLC Control — Touch screen operation, auto length measuring & cutting
Aluminum & Galvanized Steel Compatible — 0.6–0.8 mm thickness range

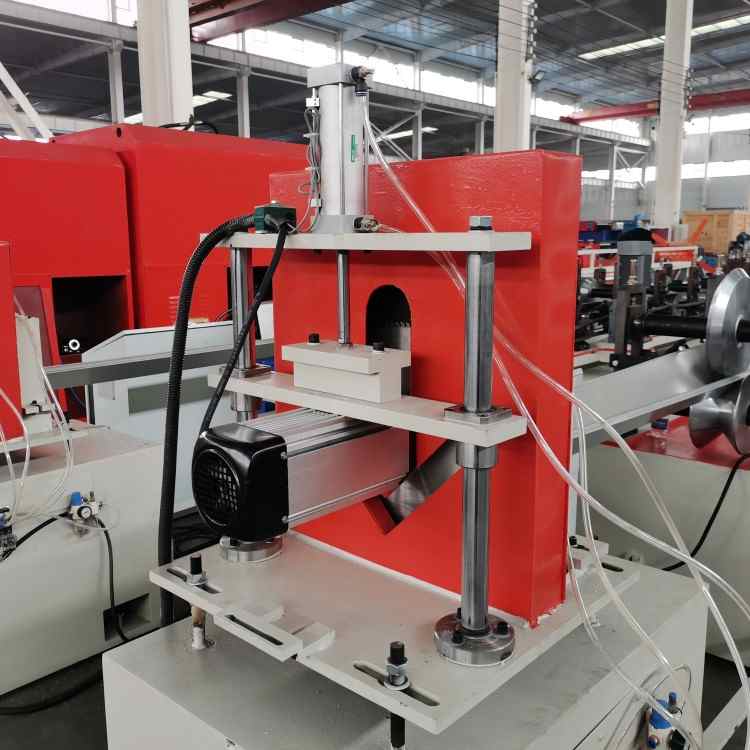

Hydraulic / Servo Fly-Saw Cutting — High precision ±1.5mm tolerance
2-Piece / 3-Piece Box Cover Design — Switch between different box cover styles
High Speed Production — 10–12 m/min forming speed
Heavy-Duty One-Piece Frame — Rigid welded structure for stable operation
Gcr15 Chrome-Plated Rollers — Long service life, smooth surface finish

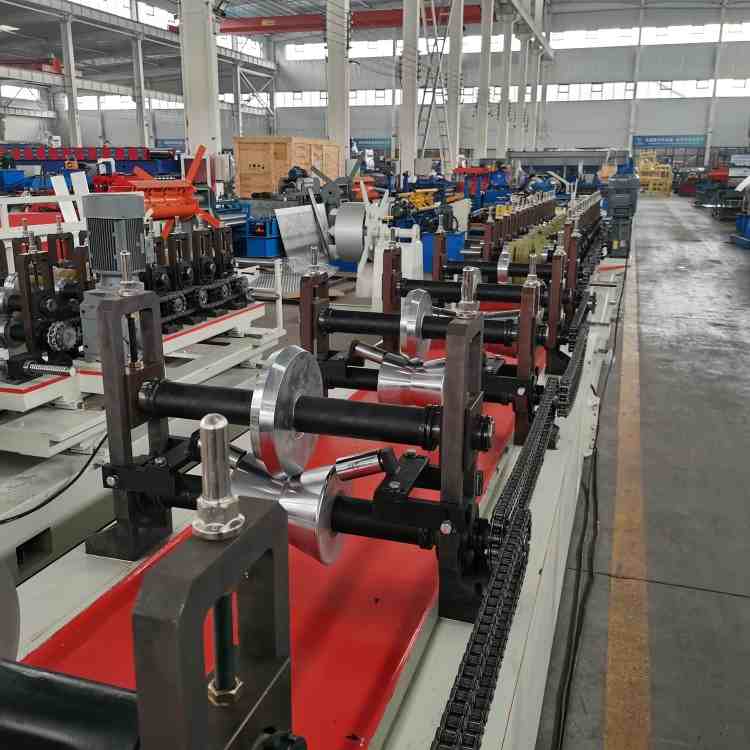

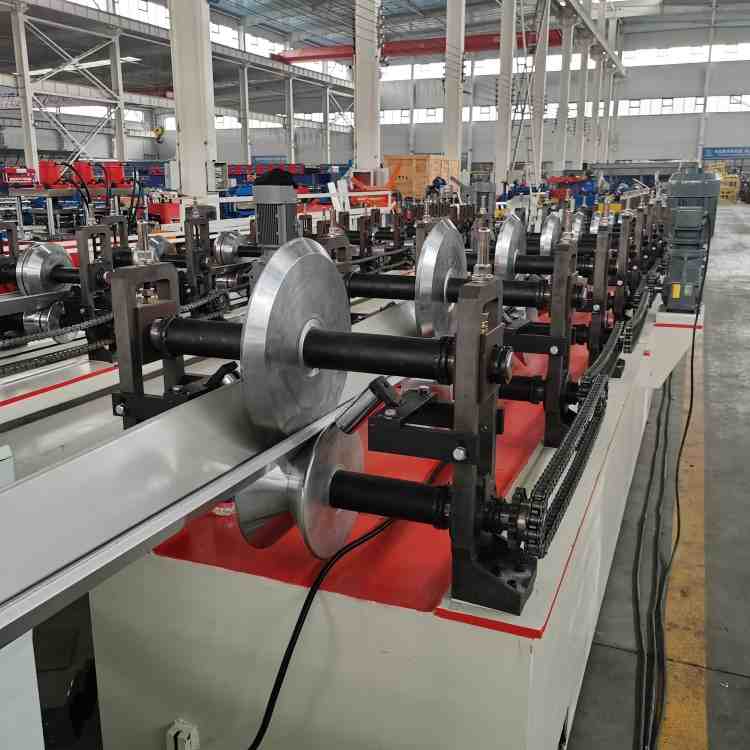

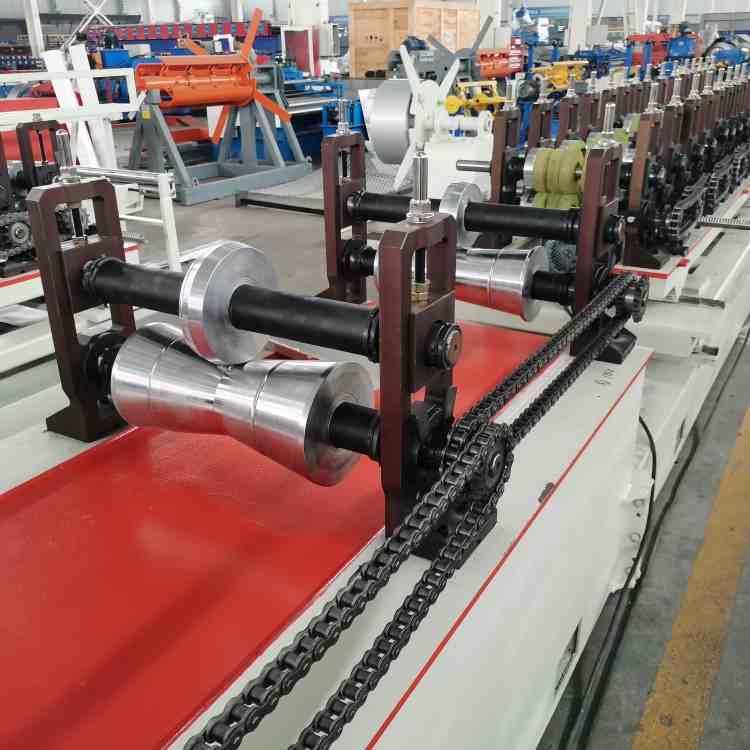

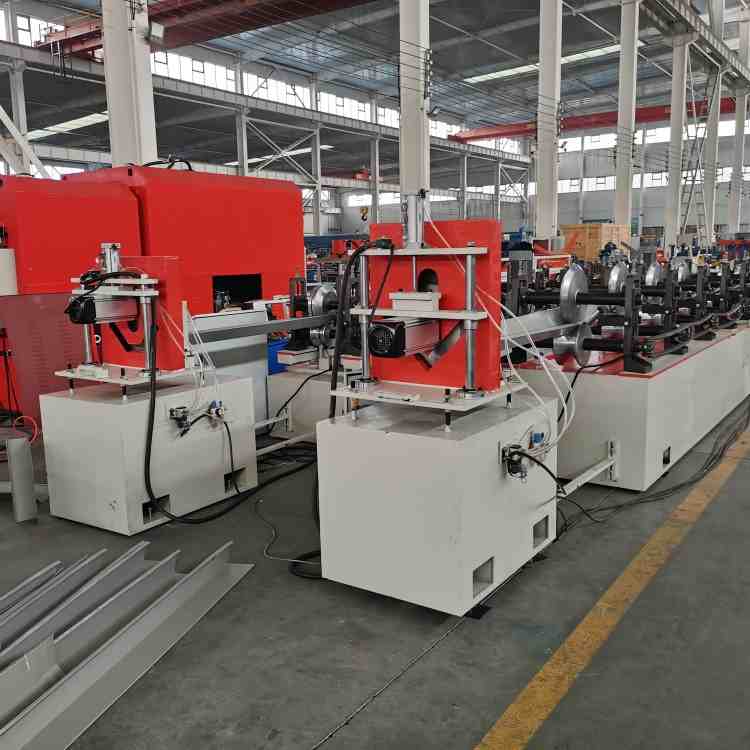

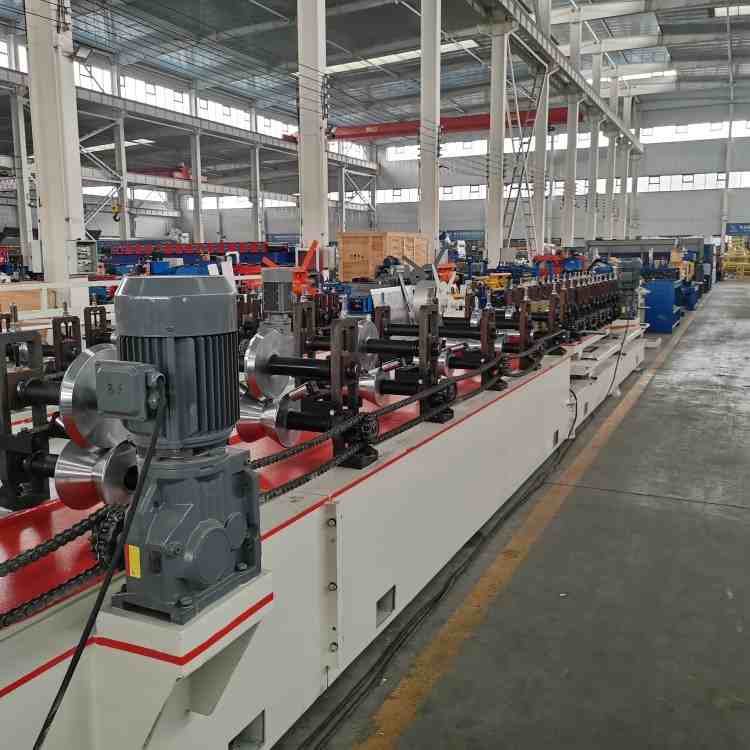

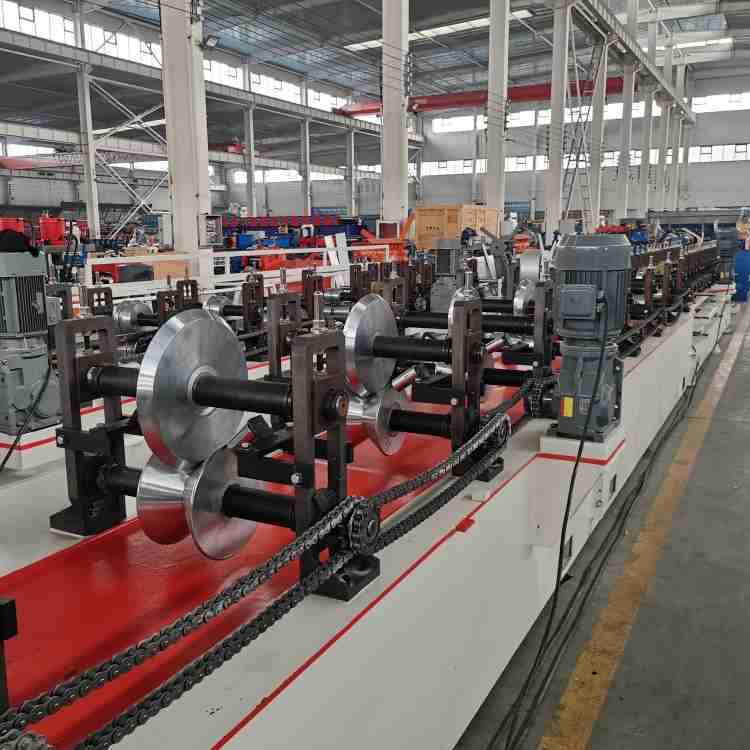

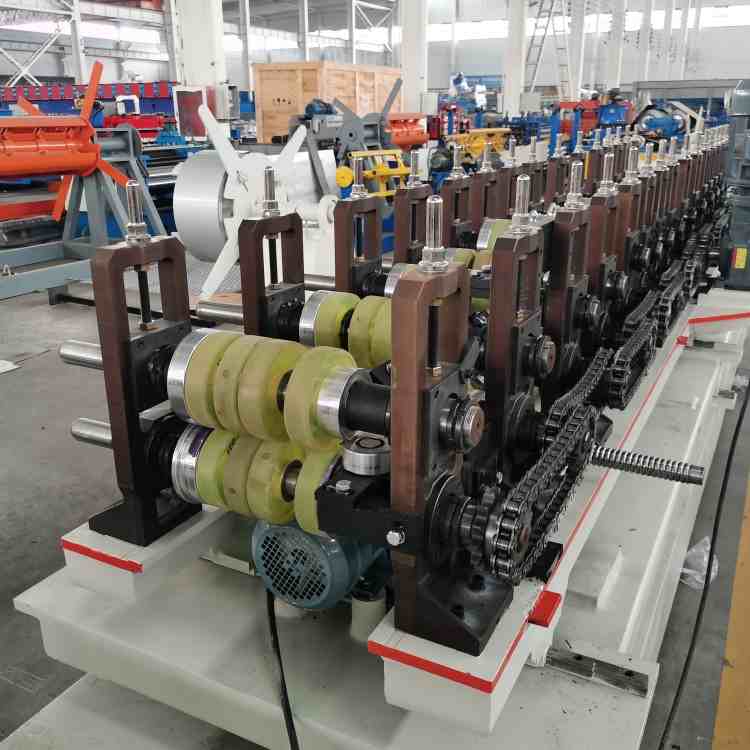

The aluminum roller shutter box / housing roll forming machine is a specialized cold roll forming equipment designed to produce the protective cover casing (box/housing) that encloses the rolling shutter door's barrel/drum assembly. This housing box sits at the top of rolling shutter door installations and serves both protective and aesthetic functions — shielding the rolled-up curtain from dust, rain, and external impact while giving the finished door a clean, professional appearance.
The aluminum housing box produced by this machine is widely used in residential roller shutter doors and windows, providing a neat exterior finish for home garage doors, window shutters, and patio roller doors. The aluminum material ensures corrosion resistance and lightweight installation
